Advanced -> Fullscreen Warnings menu item

In the Warnings menu item of the Advanced submenu, you can activate or deactivate warnings for certain cases.

The warning in question will flash across the entire screen.

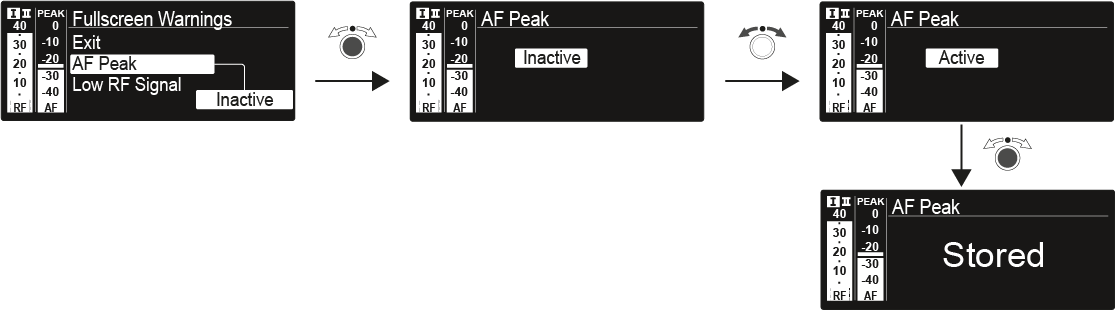

You can activate or deactivate the following warnings:

AF Peak

The audio level is too high.

Low RF signal

The RF signal is too weak.

RF Mute

The RF signal from the transmitter to the receiver is deactivated.

TX Mute

The transmitter audio signal is muted.

RX Mute

The receiver audio output is muted.

Low Battery

The battery charge of the transmitter is low.
