Name menu item

In the Name menu item you can enter a name for the radio link.

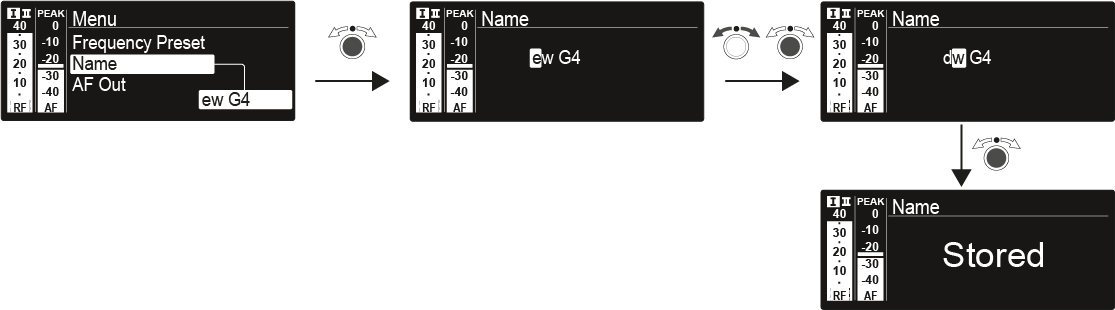

To open the Name menu item:

On the home screen, press the jog dial to open the operating menu.
Turn the jog dial until the Name menu item appears in the selection frame.
Press the jog dial to open the menu.
Adjust the settings as desired.
Press the jog dial to save your selection.
OR
Press the ESC button to cancel the entry without saving the setting.
