Product overview

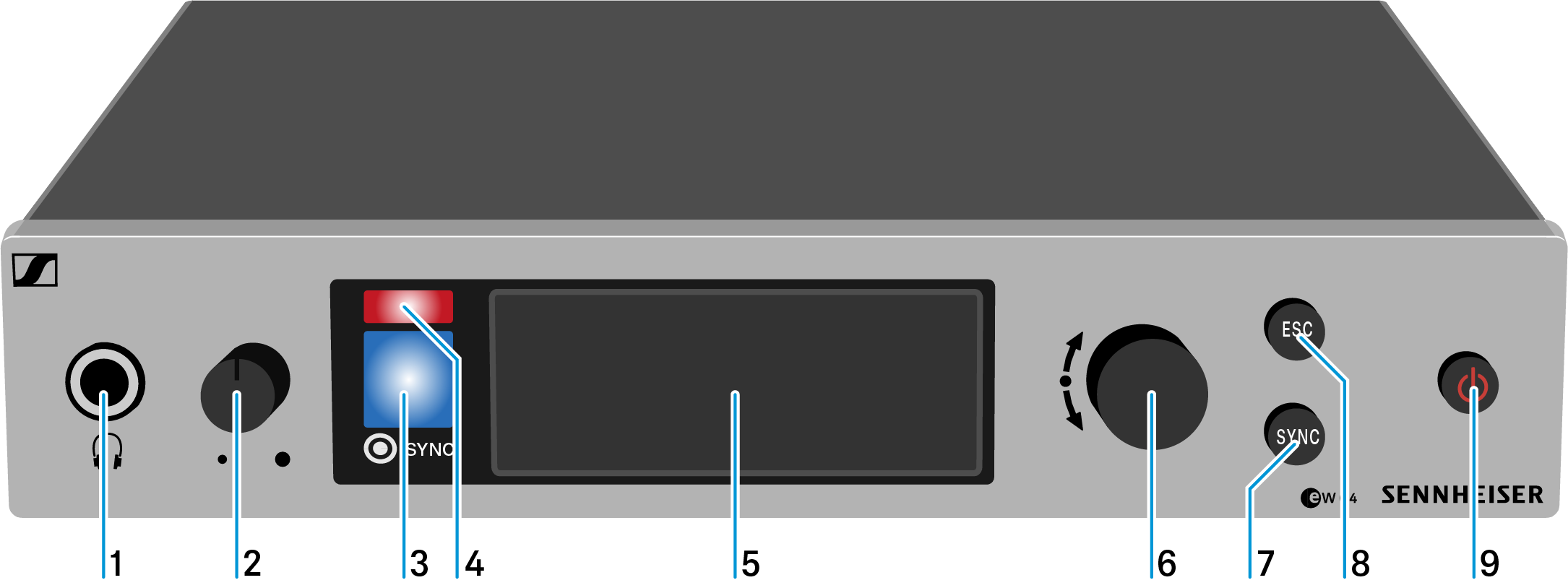

Front

1	Headphone socket see Using the headphone output
2	Volume control for the headphone socket see Using the headphone output
3	Infrared interface with a blue LED see Ew 300-500 G4 synchronizing
4	Red LED for warnings see Advanced -> Fullscreen Warnings menu item
5	Display panel see Displays on the rack receiver display panel
6	Jog-Dial for navigating through the menu see Buttons for navigating through the menu
7	SYNC button see Ew 300-500 G4 synchronizing
8	ESC button see Buttons for navigating through the menu
9	STANDBY button see Switching the rack receiver on and off

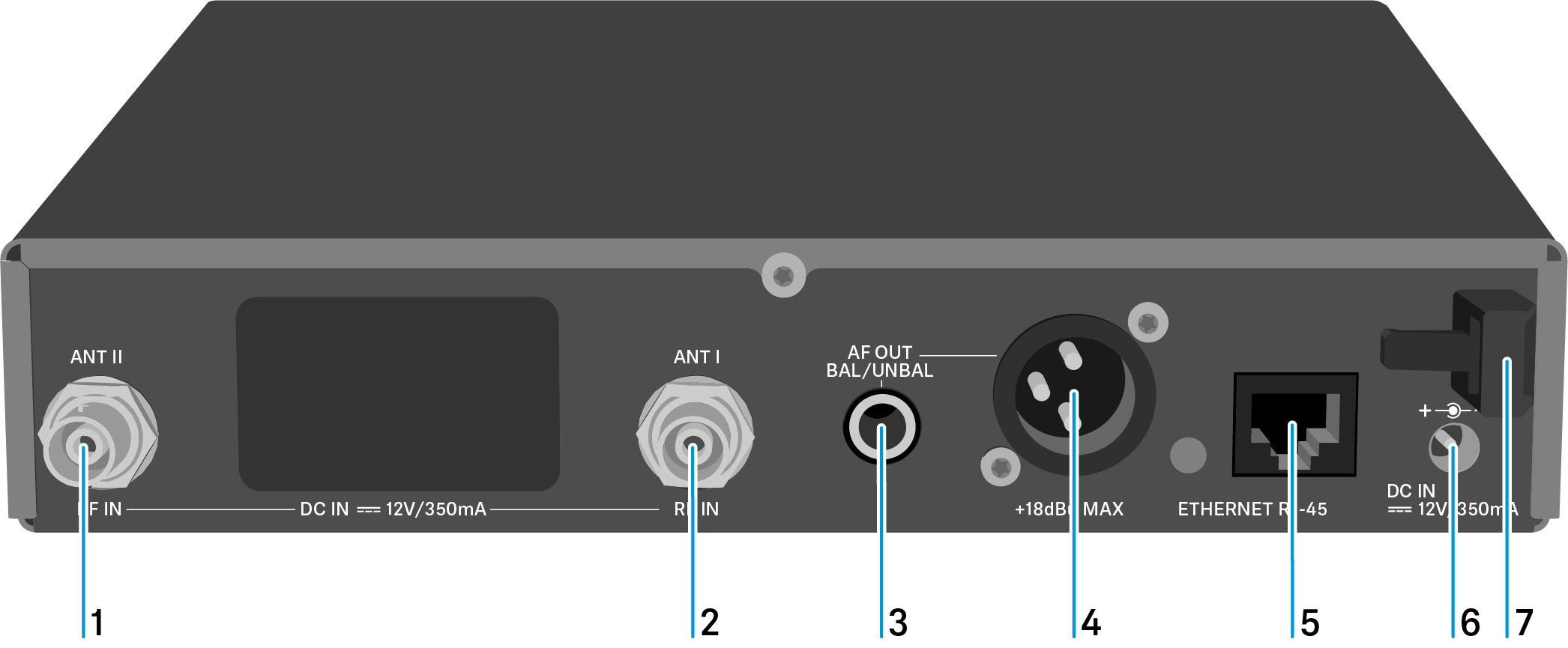

Back

1	BNC socket, antenna input II (ANT II) with remote power supply unit see Connecting antennas
2	BNC socket, antenna input I (ANT I) with remote power supply unit see Connecting antennas
3	6.3 mm jack socket for audio output, unbalanced (AF OUT UNBAL) see Outputting audio signals
4	XLR-3 socket for audio output, balanced (AF OUT BAL) see Outputting audio signals
5	LAN connection socket (ETHERNET RJ 45) see Creating a data network
6	Connecting cables for the power supply unit (DC IN) see Connecting/disconnecting the rack receiver to/from the power supply system
7	Strain relief for the cable of the power supply unit see Connecting/disconnecting the rack receiver to/from the power supply system
