Instruction manual
Starting up and operating devices of the ew G4 series.
EM 300-500 G4 rack receiver
Setting options in the menu
In the rack receiver menu, you can configure the following settings.
Advanced menu item
In the Advanced submenu you can configure enhanced settings.
Advanced -> Brightness menu item

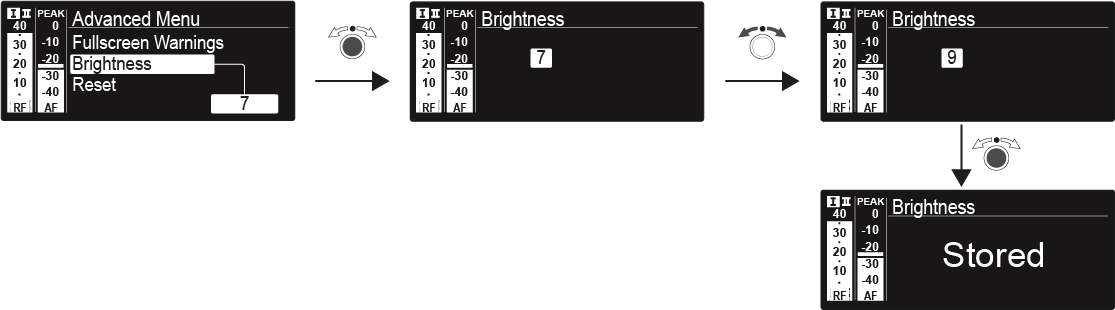

In the Brightness menu item of the Advanced submenu, you can adjust the display contrast of the display panel.
