Connecting antennas

To connect the supplied rod antennas:
  1. Connect the first rod antenna to the ANT I socket on the rear side of the EM 300-500 G4.
  2. Connect the second rod antenna to the ANT II socket on the rear side of the EM 300-500 G4.

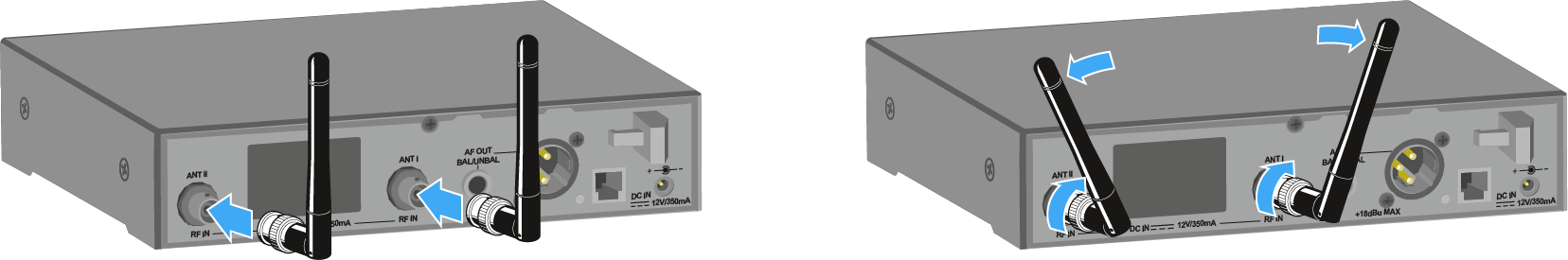

  3. Gently angle the rod antennas to the left and right as shown in the figure.

If you are using more than one receiver, we recommend using remote antennas and, as needed, Sennheiser antenna accessories. For more information, visit the ew G4 product page at sennheiser.com/g4-business.
