Connecting/disconnecting the rack receiver to/from the power supply system

Only use the supplied power supply unit. It is designed for your receiver and ensures safe operation.

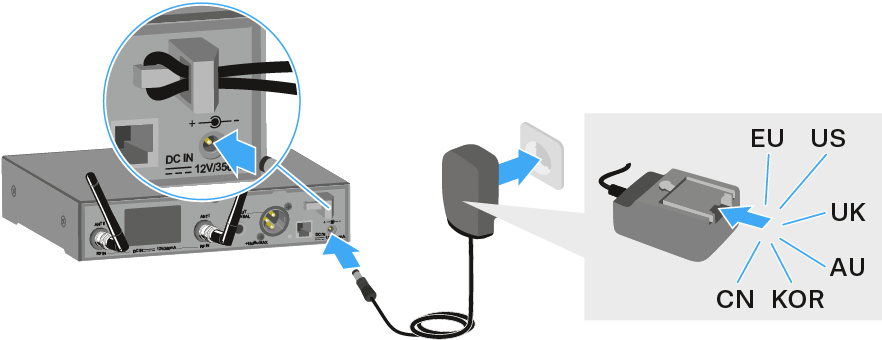

To connect the rack receiver to the power supply system:
  1. Insert the plug of the power supply unit into the DC IN socket of the receiver.
  2. Pass the cable of the power supply unit through the cable grip.
  3. Slide the supplied country adapter onto the power supply unit.

  4. Plug the power supply unit into the wall socket.
To completely disconnect the rack receiver from the power supply system:
  1. Unplug the power supply unit from the wall socket.
  2. Unplug the power supply unit from the DC IN socket of the receiver.
