Frequency Preset menu item

In the Frequency Preset menu item, you can adjust the receiving frequency of the receiver by adjusting the frequency bank and the channel.

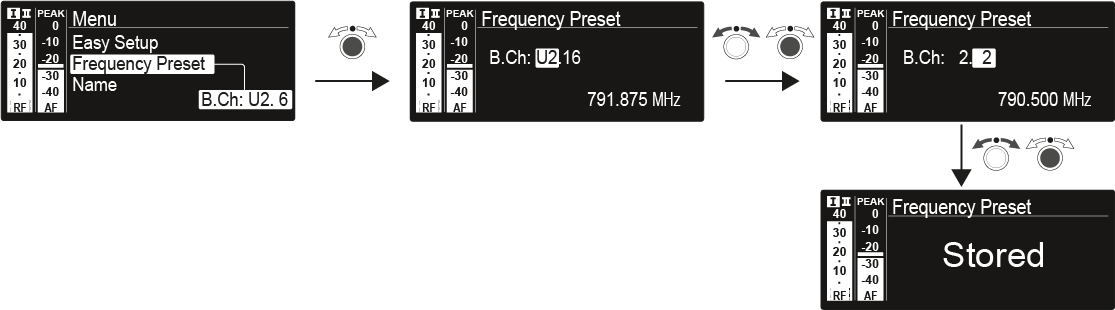

To open the Frequency Preset menu item:

On the home screen, press the jog dial to open the operating menu.
Turn the jog dial until the Frequency Preset menu item appears in the selection frame.
Press the jog dial to open the menu.
Adjust the settings as desired.
Press the jog dial to save your selection.
OR
Press the ESC button to cancel the entry without saving the setting.

You can set the frequencies of the frequency bank U here: Advanced -> Tune menu item.
