Starting up and operating devices of the ew G4 series.
EM 300-500 G4 rack receiver
Setting options in the menu
In the rack receiver menu, you can configure the following settings.
Equalizer menu item
In the Equalizer menu item, you can change the frequency response of the output signal.

Instruction manual
Starting up and operating devices of the ew G4 series.
- EM 100 G4 rack receiver
- SKM 100 G4 | SKM 100 G4-S handheld transmitter
- SK 100 G4 bodypack transmitter
- EM 300-500 G4 rack receiver
  - Product overview
  - Connecting/disconnecting the rack receiver to/from the power supply system
  - Connecting antennas
  - Outputting audio signals
  - Creating a data network
  - Installing the rack receiver in a rack
  - Switching the rack receiver on and off
  - Muting the audio output
  - Using the headphone output
  - Lock-off function
  - Buttons for navigating through the menu
  - Displays on the rack receiver display panel
  - Home Screen
  - Menüstruktur
    The figure shows the complete EM 300-500 G4 menu structure in an overview.
  - Setting options in the menu
    In the rack receiver menu, you can configure the following settings.
    - Squelch menu item
      You can adjust the squelch threshold in the Squelch menu item.
    - Easy Setup menu item
      You can scan for unused frequencies using the Easy Setup menu item.
    - Frequency Preset menu item
      In the Frequency Preset menu item, you can adjust the receiving frequency of the receiver by adjusting the frequency bank and the channel.
    - Name menu item
      In the Name menu item you can enter a name for the radio link.
    - AF Out menu item
      In the AF Out menu item, you can set the audio level that is output via the receiver audio outputs.
    - Equalizer menu item
      In the Equalizer menu item, you can change the frequency response of the output signal.
    - Auto Lock menu item
      In the Auto Lock menu item you can activate or deactivate auto lock-off function.
    - Advanced menu item
      In the Advanced submenu you can configure enhanced settings.
- SKM 300 G4-S handheld transmitter
- SKM 500 G4 handheld transmitter
- SK 300 G4-RC bodypack transmitter
- SK 500 G4 bodypack transmitter
- EK 100 G4 diversity receiver
- SKP 100 G4 plug-on transmitter
- EK 500 G4 diversity receiver
- SKP 500 G4 plug-on transmitter
- Establishing a radio link
- Synchronizing devices
- ASA 214 antenna splitter
- Cleaning and maintenance
  Note the following information when cleaning and maintaining products of the ew G4 series.

Equalizer menu item

In the Equalizer menu item, you can change the frequency response of the output signal.

You can reduce the bass range and boost the treble range.

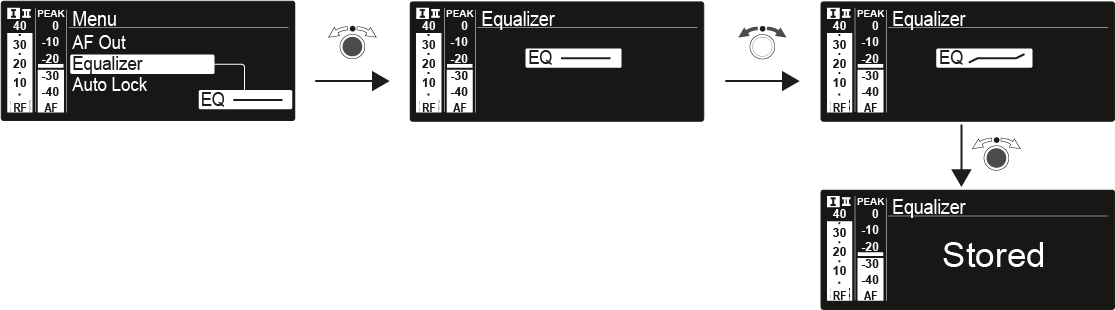

To open the Equalizer menu item:

On the home screen, press the jog dial to open the operating menu.
Turn the jog dial until the Equalizer menu item appears in the selection frame.
Press the jog dial to open the menu.
Adjust the settings as desired.
Press the jog dial to save your selection.
OR
Press the ESC button to cancel the entry without saving the setting.
