Instruction manual
Starting up and operating devices of the ew G4 series.
EM 300-500 G4 rack receiver
Setting options in the menu
In the rack receiver menu, you can configure the following settings.
Advanced menu item
In the Advanced submenu you can configure enhanced settings.
Advanced -> Sync Settings menu item
In the Sync Settings menu item of the Advanced submenu, you can configure the parameters to be sent to the transmitters and activate or deactivate transmission.

Instruction manual
Starting up and operating devices of the ew G4 series.
- EM 100 G4 rack receiver
- SKM 100 G4 | SKM 100 G4-S handheld transmitter
- SK 100 G4 bodypack transmitter
- EM 300-500 G4 rack receiver
  - Product overview
  - Connecting/disconnecting the rack receiver to/from the power supply system
  - Connecting antennas
  - Outputting audio signals
  - Creating a data network
  - Installing the rack receiver in a rack
  - Switching the rack receiver on and off
  - Muting the audio output
  - Using the headphone output
  - Lock-off function
  - Buttons for navigating through the menu
  - Displays on the rack receiver display panel
  - Home Screen
  - Menüstruktur
    The figure shows the complete EM 300-500 G4 menu structure in an overview.
  - Setting options in the menu
    In the rack receiver menu, you can configure the following settings.
    - Squelch menu item
      You can adjust the squelch threshold in the Squelch menu item.
    - Easy Setup menu item
      You can scan for unused frequencies using the Easy Setup menu item.
    - Frequency Preset menu item
      In the Frequency Preset menu item, you can adjust the receiving frequency of the receiver by adjusting the frequency bank and the channel.
    - Name menu item
      In the Name menu item you can enter a name for the radio link.
    - AF Out menu item
      In the AF Out menu item, you can set the audio level that is output via the receiver audio outputs.
    - Equalizer menu item
      In the Equalizer menu item, you can change the frequency response of the output signal.
    - Auto Lock menu item
      In the Auto Lock menu item you can activate or deactivate auto lock-off function.
    - Advanced menu item
      In the Advanced submenu you can configure enhanced settings.
      - Advanced -> Tune menu item
        In the Tune menu item of the Advanced submenu, you can configure the receiving frequencies for the frequency banks U1 to U6.
      - Advanced -> Sync Settings menu item
        In the Sync Settings menu item of the Advanced submenu, you can configure the parameters to be sent to the transmitters and activate or deactivate transmission.
      - Advanced -> Pilot Tone menu item
        In the Pilot Tone menu item of the Advanced submenu, you can activate and deactivate the pilot tone evaluation.
      - Advanced -> Fullscreen Warnings menu item
        In the Warnings menu item of the Advanced submenu, you can activate or deactivate warnings for certain cases.
      - Advanced -> Brightness menu item
        In the Brightness menu item of the Advanced submenu, you can adjust the display contrast of the display panel.
      - Advanced -> Reset menu item
        In the Reset menu item of the Advanced submenu, you can reset the settings of the receiver.
      - Advanced -> IP Address menu item
        In the IP Address menu item of the Advanced submenu, you can configure the IP addresses.
      - Advanced -> Software Revision menu item
        In the Software Revision menu item of the Advanced submenu, you can display the current software version of the receiver.
- SKM 300 G4-S handheld transmitter
- SKM 500 G4 handheld transmitter
- SK 300 G4-RC bodypack transmitter
- SK 500 G4 bodypack transmitter
- EK 100 G4 diversity receiver
- SKP 100 G4 plug-on transmitter
- EK 500 G4 diversity receiver
- SKP 500 G4 plug-on transmitter
- Establishing a radio link
- Synchronizing devices
- ASA 214 antenna splitter
- Cleaning and maintenance
  Note the following information when cleaning and maintaining products of the ew G4 series.

Advanced -> Sync Settings menu item

In the Sync Settings menu item of the Advanced submenu, you can configure the parameters to be sent to the transmitters and activate or deactivate transmission.

The parameters are defined separately for the SK, SKM and SKP.

You can activate/deactivate the following parameters:

Sensitivity
Auto Lock
Mute Mode
RF Power
Phantom Power 48V (only SKP)

To configure a parameter and activate or deactivate transmission:

Go to the parameter in question in the Advanced -> Sync Settings menu.

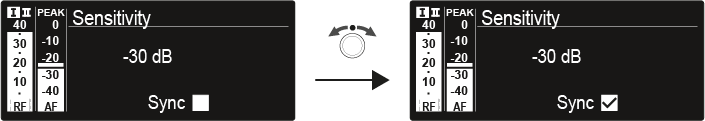

Press the jog dial to open the sub-item.
