AF Out menu item

In the AF Out menu item, you can set the audio level that is output via the receiver audio outputs.

Setting range:

-24 dB to +24 dB
in 3 dB steps

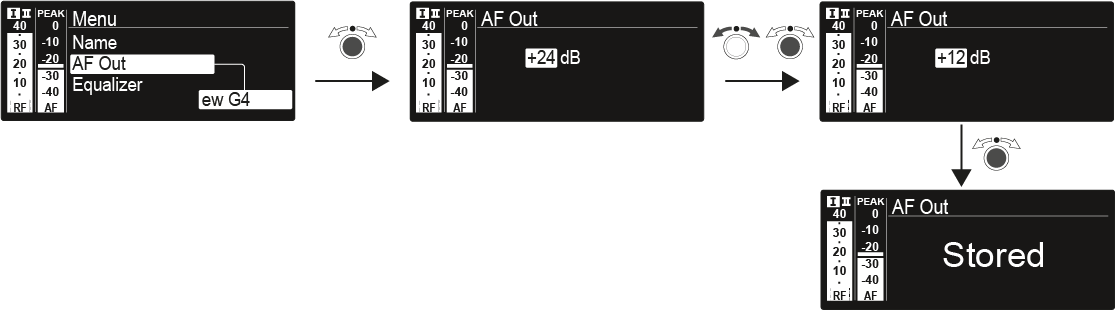

To open the AF Out menu item:

On the home screen, press the jog dial to open the operating menu.
Turn the jog dial until the AF Out menu item appears in the selection frame.
Press the jog dial to open the menu.
Adjust the settings as desired.
Press the jog dial to save your selection.
OR
Press the ESC button to cancel the entry without saving the setting.
