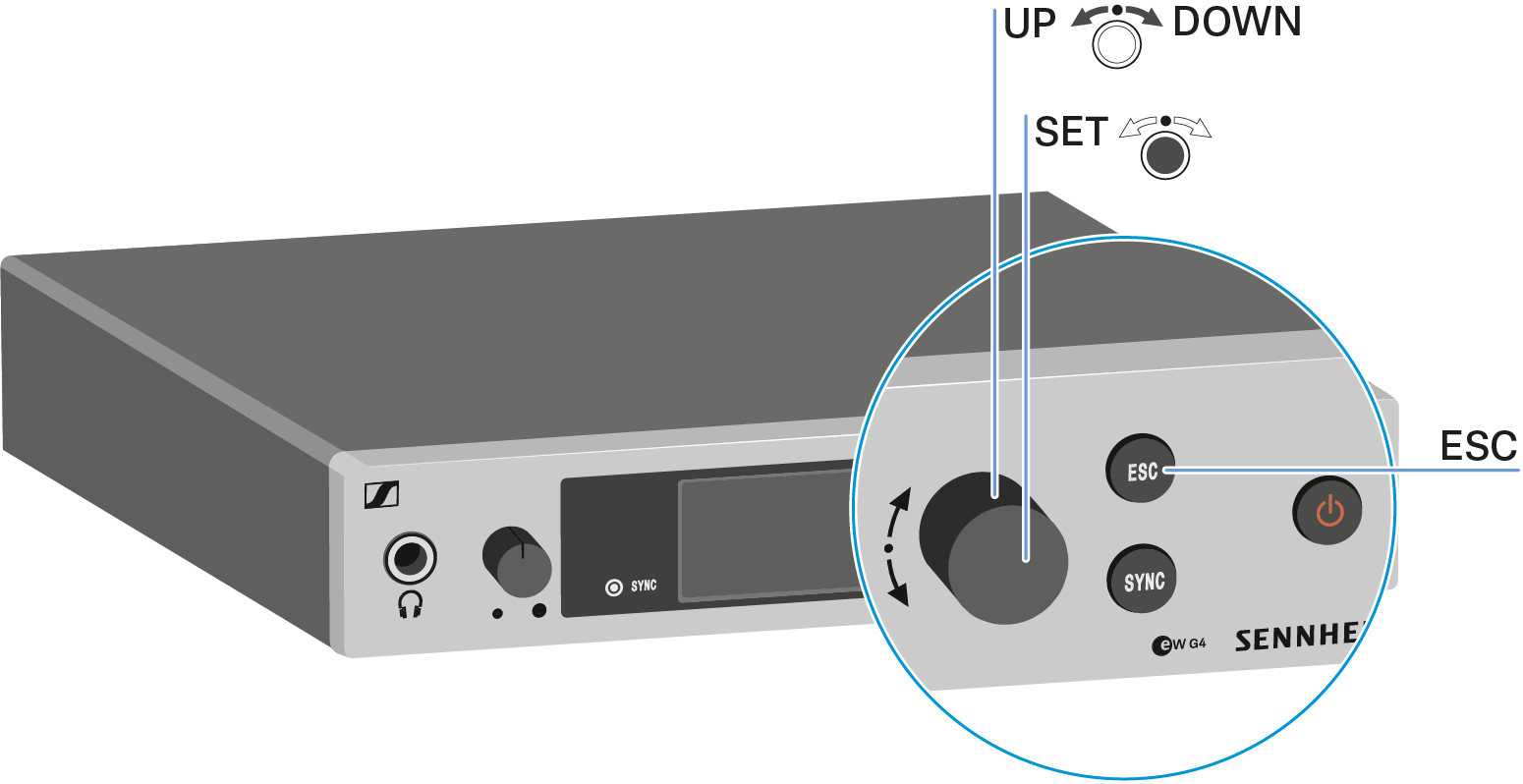

Buttons for navigating through the menu

To navigate through the EM 300-500 G4 operating menu, you need the following buttons.



ESC button
  • Short-press
    • Cancels the entry and returns to the previous display
  • Long-press
    • Cancels the entry and returns to the home screen
Press the jog dial
  • Changes from the current standard display to the operating menu
  • Calls up a menu item
  • Changes to a submenu
  • Stores the settings and returns to the operating menu
Turn the jog dial
  • Selects a standard display (see Home Screen)
  • Changes to the previous or next menu item
  • Changes the setting of a menu item
