System -> Hardware menu item

This menu item shows information about the hardware.

You cannot configure any settings here.

To display information in the System -> Hardware menu item:

Turn the jog dial in the System menu item until the Hardware menu item appears in the selection frame.
Press the jog dial to open the menu.

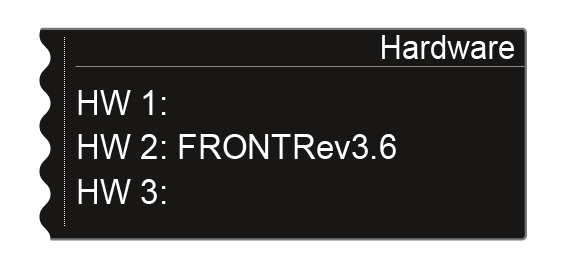

The following view is shown on the display.
