System -> Device ID menu item

You can enter the name of the device in this menu item. This name is displayed for this EM 6000 in the network.

To make settings in the System -> Device ID menu item:

Turn the jog dial in the System menu item until the Device ID menu item appears in the selection frame.
Press the jog dial to open the menu.

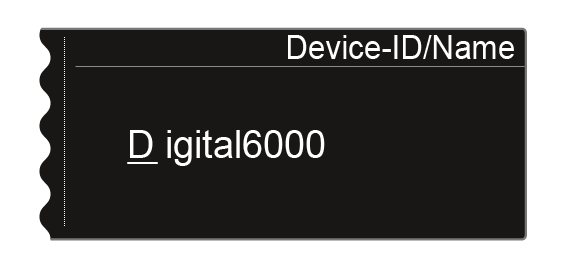

The following view is shown on the display.
Turn the jog dial to select the desired character.
Press the jog dial to go to the next position.
Press the SAVE button to save the set name.
