System -> Booster Feed menu item

In this menu item, you can activate the power supply for an external antenna amplifier if you are using active remote antennas.

You can find more information about antennas under Recommendations for using antennas.

To make settings in the System -> Wordclock menu item:

Turn the jog dial in the System menu item until the Booster Feed menu item appears in the selection frame.
Press the jog dial to open the menu.

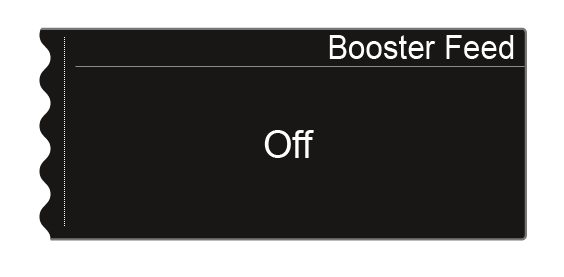

The display shows you the option that is currently selected.

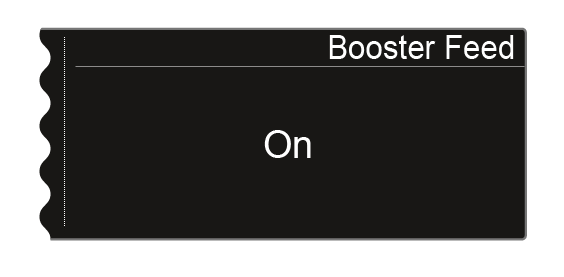

Turn the jog dial to choose between the On and Off options.
Press the SAVE button to save the setting.
Switch the power supply for external antenna amplifiers on only if you are actually using external antenna amplifiers.
If the power supply for external antenna amplifiers is activated, it becomes active immediately once the EM 6000 is connected to the power supply system, regardless of whether the EM 6000 is switched on or off. See Connecting/disconnecting the EM 6000 to/from the power supply system.
