Starting up and operating devices of the Digital 6000 line.
Synchronizing devices

Instruction manual
Starting up and operating devices of the Digital 6000 line.
- EM 6000 2-channel receiver
  These sections contain information about installing, starting up and operating the EM 6000 2-channel receiver.
- SKM 6000 handheld transmitter
  These sections contain information about installing, starting up and operating the SKM 6000 handheld transmitter.
- SK 6000 bodypack transmitter
  These sections contain information about installing, starting up and operating the SK 6000 bodypack transmitter.
- SK 6212 bodypack transmitter
  These sections contain information about installing, starting up and operating the SK 6212 bodypack transmitter.
- Modular L 6000 charger
  These sections contain information about installing, starting up and operating the modular L 6000 charger and the corresponding charging modules.
- L 70 USB charger
- Establishing a radio link
  Note the following points when you establish a radio link between the transmitter and receiver.
- Synchronizing devices
- Cleaning and maintenance
  Note the following information when cleaning and maintaining Digital 6000 series products.

Synchronizing devices

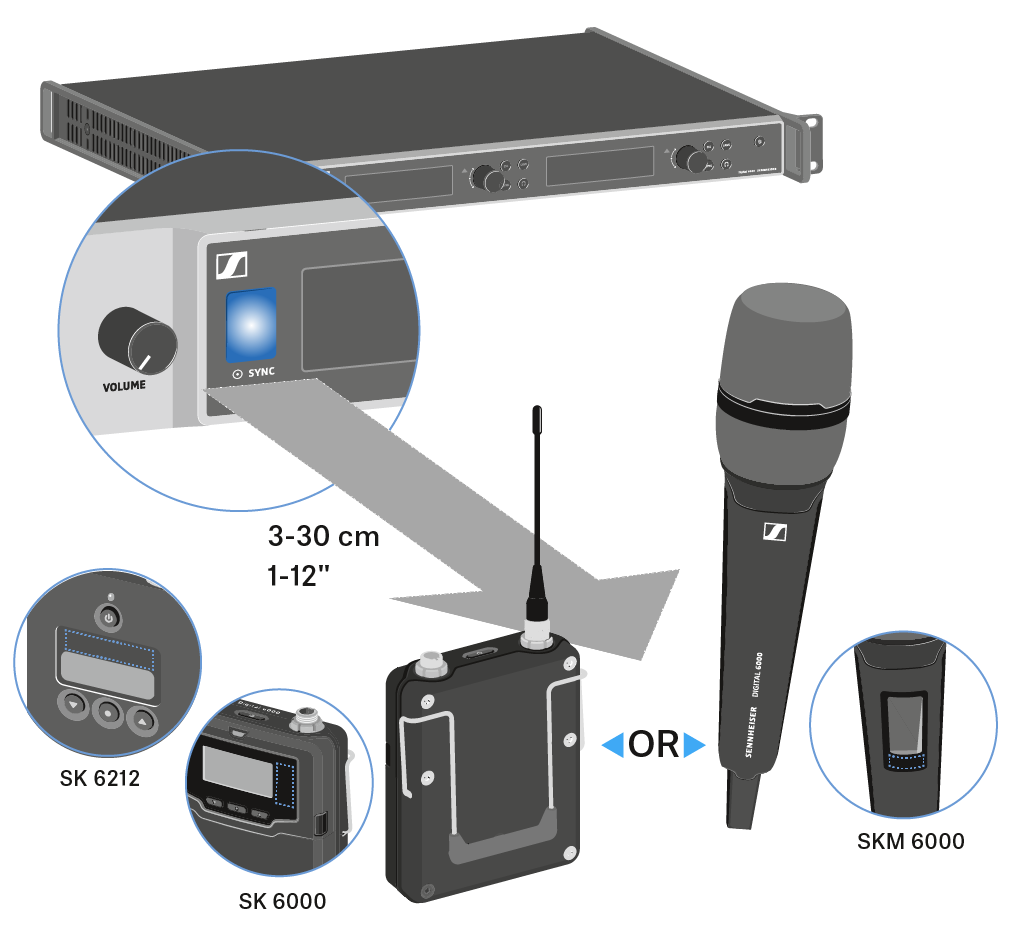

To synchronize an EM 6000 receiving channel with a transmitter:

Press the SYNC button for the desired receiving channel.
Hold the transmitter in front of the EM 6000 infrared interface at a distance of between 3 and 30 cm (1 3/16" to 11 13/16").
Ensure that you align the transmitter so that its infrared interface next to the display is pointing at the infrared interface of the EM 6000.
Maintain the specified distance.
