Frequency menu item

In the Frequency menu item, you can adjust the frequency for the channel in question.

You can select a frequency from the predefined frequency banks B1 to B6 (up to 65 channels per bank) or manually adjust the frequency.

You can also select frequencies from the user-defined frequency banks U1 to U6. You can adjust these frequency banks in the Bank Edit menu item. See Bank Edit menu item.

To open the Frequency menu item:

On the home screen, press the jog dial to open the operating menu.
Turn the jog dial until the Frequency menu item appears in the selection frame:
Press the jog dial to open the menu.

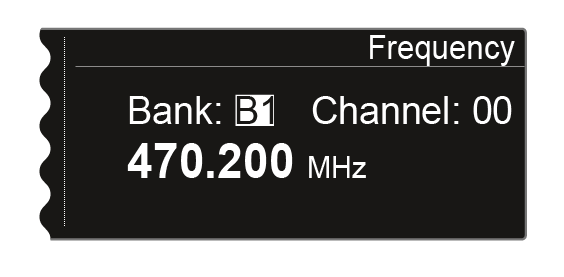

The following view is displayed:
Turn the jog dial to select a different frequency bank.

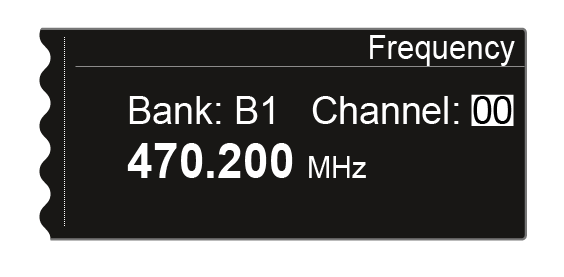

Press the jog dial to go to the channel selection:
Turn the jog dial to set a different channel.
Press the SAVE button to confirm the selection of the bank and channel.

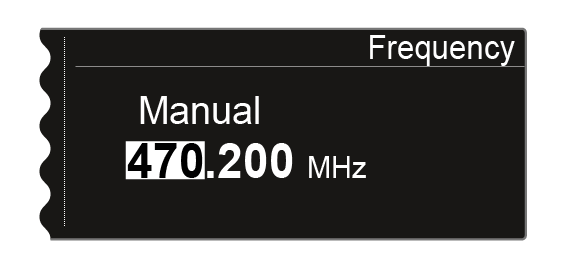

Or: Press the jog dial to go to the manual frequency setting:
Turn the jog dial to set the desired frequency.
Press the SAVE button to save the set frequency.
