Pairing the transmitter and receiver

The two transmitters are delivered pre-paired with the receiver. If you do not automatically connect to the receiver when you turn it on, you can manually activate the pairing mode of both devices to re-establish the connection.

Notice:

If the transmitter is in Bluetooth^® mode, you must first switch to proprietary mode. You can recognize this by the Connection LED lighting up solid blue. To do this, briefly press the ON/OFF button on the transmitter three times while it is switched on. The Connection LED now lights up solid red.

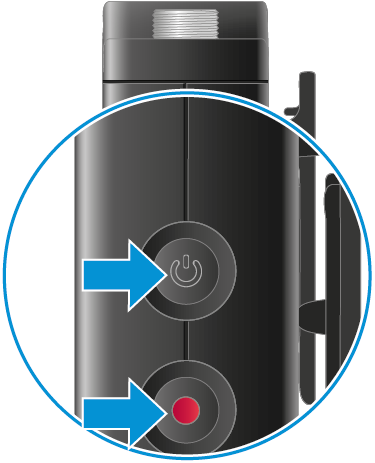

To activate pairing mode on the transmitter:

Press the ON/OFF and REC buttons on the transmitter simultaneously for 2 seconds.
Do not release the two buttons until the connection status LED flashes blue (see Meaning of the LEDs on the transmitter).
Pairing mode is activated on the transmitter.

To activate pairing mode on the receiver:

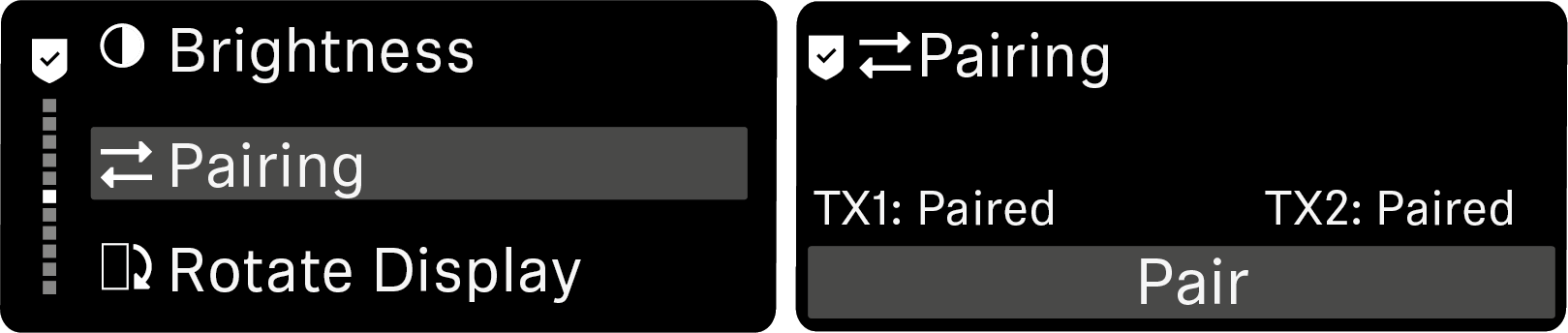

Navigate to the “Pairing” item in the receiver menu and open it (see Accessing the receiver menu, navigating through menu items and making settings).
In the submenu that opens, you can activate pairing mode using the “Pair” button.
Pairing mode is activated on the receiver.

The devices will now connect automatically.
