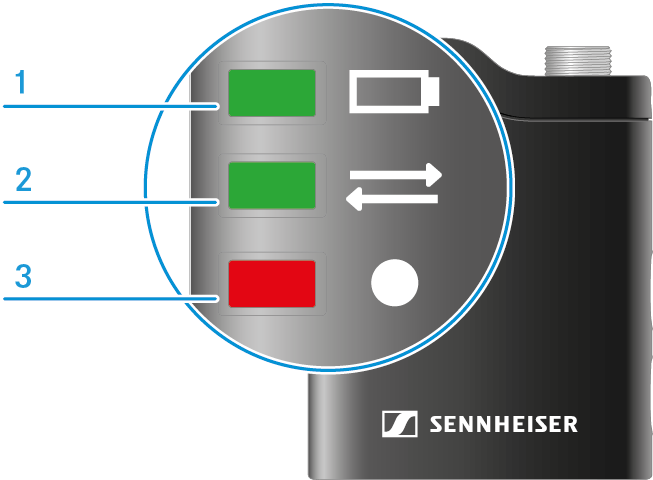

  - Meaning of the LEDs on the transmitter
  - Switching off the transmitter LEDs
    It is possible to turn off the transmitter LEDs individually while they are connected to the receiver. This helps prevent unwanted flashing in video recordings.
  - Rotate display feature
    The receiver has a gyro sensor that, when the "Rotate Display" feature is enabled, can automatically rotate the display by 180 degrees. This feature is especially useful if you want to shoot videos in portrait layout with your smartphone or if the display is upside down due to the attachment of the receiver to a camera or smartphone.
  - Installing updates or performing a reset
  - Attaching the transmitter to clothing
    The transmitter can be attached by clip or magnet, depending on the nature of the clothing.
  - Using the Profile Wireless as a handheld or table microphone
    Depending on the recording situation, the Profile Wireless can be used as a handheld microphone or as a table microphone on a tripod.
- Cleaning and maintenance
  Note the following information when cleaning and maintaining the product.
- Transport
  This chapter contains information on the proper transport of the Profile Wireless.

Using the Profile Wireless as a handheld or table microphone

Depending on the recording situation, the Profile Wireless can be used as a handheld microphone or as a table microphone on a tripod.

To use the Profile Wireless as a handheld microphone:

To use the Profile Wireless as a handheld microphone, use either the large windshield, which completely covers the charging bar on one side, or the two small windshields, which are attached to the transmitters. When the transmitters are inserted, it is best to start recording by double-tapping on the receiver (see Start/stop/mute recording).
The Profile Wireless can now be used as a handheld microphone.

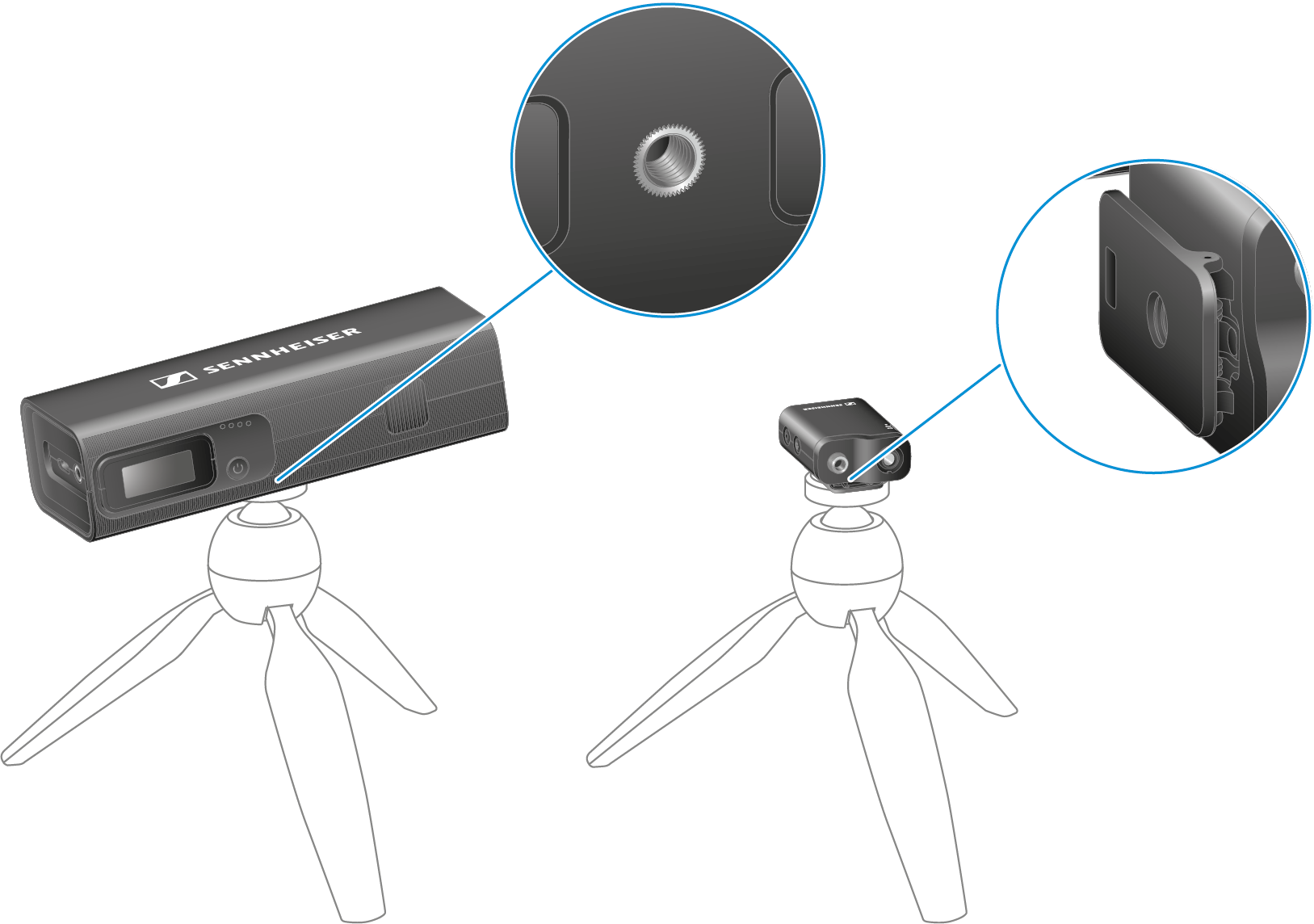

To use the Profile Wireless as a table microphone:

Use the thread on the bottom of the charging bar, or alternatively the thread on the transmitter clip, to attach the microphone to a tripod.
The charging bar or transmitter can now be used as a table microphone.
