Outputting audio signals

The receiver has two unbalanced 3.5 mm audio outputs.

CAUTION

Hearing damage due to high volumes

The product is capable of producing high sound pressure levels. Higher volumes or longer durations can damage your hearing.

Set the volume to a medium level.

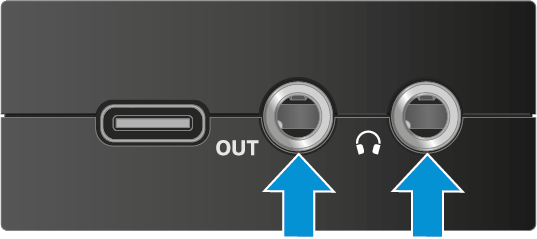

To connect headphones or an audio output device to the receiver:

Insert the jack cable into the appropriate socket on the receiver.
