Attaching the transmitter to clothing

The transmitter can be attached by clip or magnet, depending on the nature of the clothing.

DANGER

Danger due to the influence of magnetic fields

Magnets may affect the function of cardiac pacemakers and implanted defibrillators.

Always maintain a distance of at least 10 cm/4" between the product and the cardiac pacemaker or implanted defibrillator (ICDs) or other implants, as the product generates permanent magnetic fields.

Warn people who have such devices that they are approaching magnets.

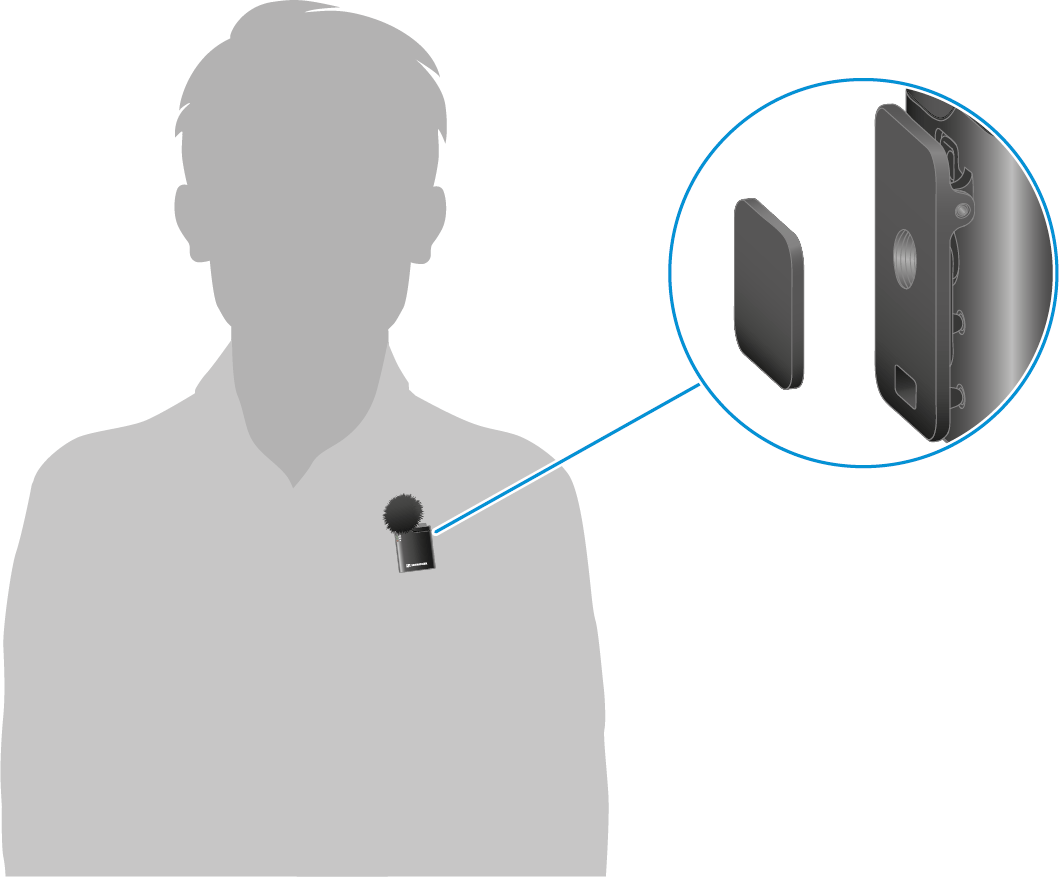

To attach the transmitter to clothing with a magnet:

Use one of the magnets provided on the bottom of the charging bar. Position the transmitter on the garment as desired and guide the magnet under the garment opposite the transmitter as shown.
The transmitter is now held to the garment by magnetic force.

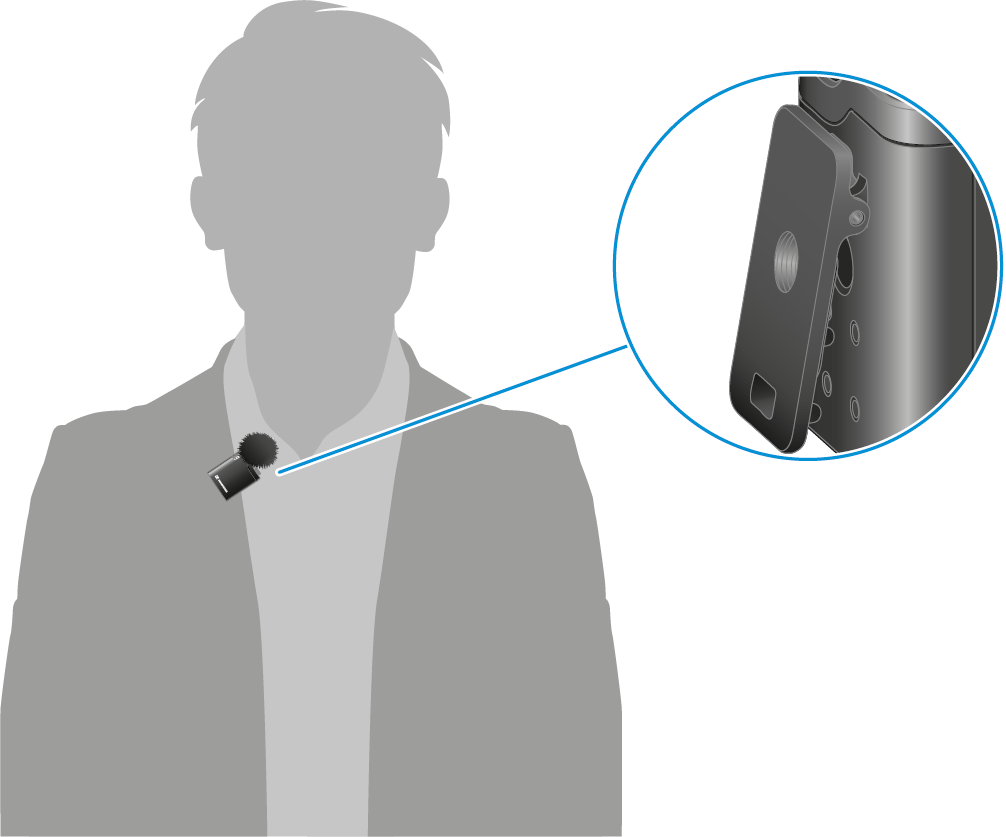

To clip the transmitter to clothing:

Use the clip on the back of the transmitter, for example, to attach it to the collar of a garment.
The transmitter is now attached to the garment.
