Displays on the receiver’s display panel

Status information such as recording mode, signal strength, battery status and audio level is shown on the display.

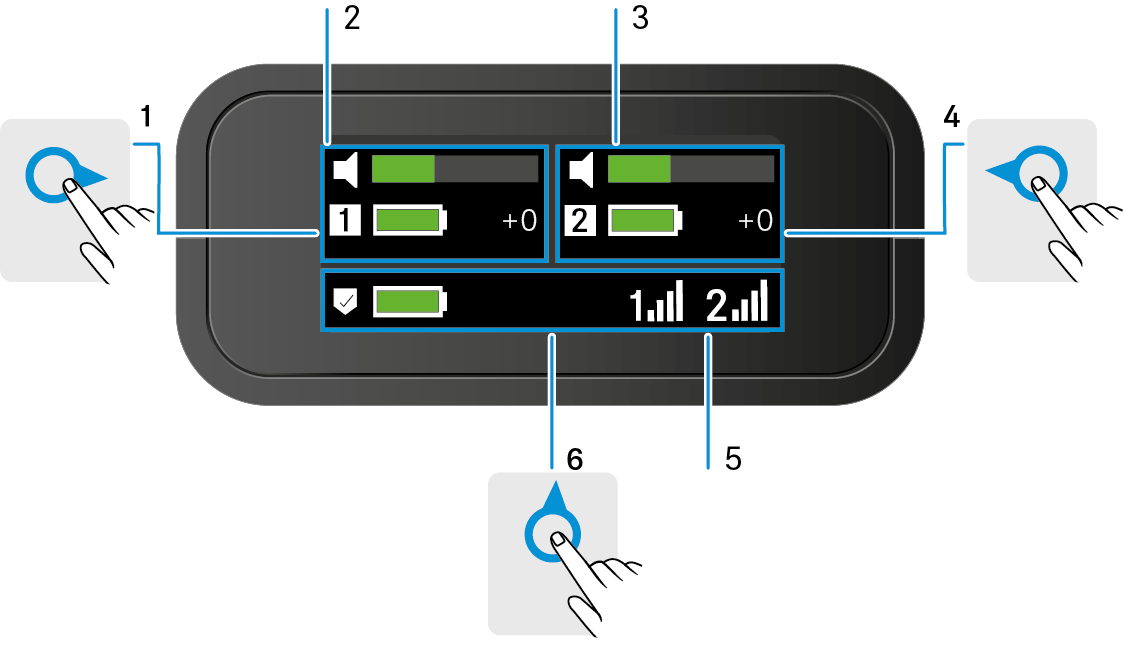

Home screen

The display is divided into three different areas for the two transmitters and the receiver.

TX1 menu – swipe right to make adjustments.
TX1 status information
TX2 status information
TX2 menu – swipe left to make adjustments.
RX menu – status information
RX menu – swipe up to make adjustments.

See Operating the receiver for more information on navigating the menu structure.

Home screen icons

The following icons may appear on the home screen depending on your settings:


	RX mode: Mono, Stereo, or Safety are enabled. See Receiver output modes.
	Transmitter audio bar.
	Adaptor for connecting a smartphone to the receiver. See Connecting a receiver to a smartphone
	Display lock enabled.
	Icons for transmitters 1 and 2.
	Active recording by the transmitters. See Start/stop/mute recording
	Display of the transmitter signal strength.
	Display of the battery status. See Charging devices / checking charge levels
	Display of the gain level.
	Low-cut filter activated.
