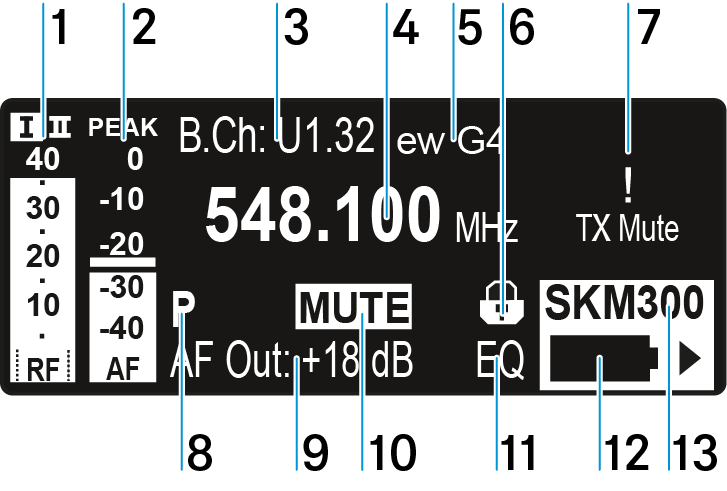

Receiver Parameters standard display


1	RF level RF (radio frequency) RF signal level display including the display of the squelch threshold (see Squelch menu item)
2	Audio level AF (audio frequency) Displays the audio level of the received transmitter When the display shows full deflection, the audio input level is excessively high. When the transmitter is overloaded frequently or for extended periods of time, the PEAK display is shown inverted. see AF Out menu item
3	Frequency bank and channel current frequency bank and channel number see Frequency Preset menu item
4	Frequency current receiving frequency see Frequency Preset menu item
5	Name freely selectable name of the receiver see Name menu item
6	Lock-off function Lock-off function is activated on the receiver see Lock-off function
7	Warnings Activated warning messages are displayed see Advanced -> Fullscreen Warnings menu item
8	P pilot tone Activated pilot tone evaluation see Advanced -> Pilot Tone menu item
9	Output gain Current output gain of the audio frequency signal at the 6.3 mm socket / XLR socket see AF Out menu item
10	Equalizer setting Current equalizer setting see Equalizer menu item
11	MUTE muting function Receiver or transmitter is muted see Muting the audio output
12	Battery status of the transmitter SKM 300 G4-S: see Inserting and removing the batteries/rechargeable batteries SKM 500 G4: see Inserting and removing the batteries/rechargeable batteries SK 300 G4-RC: see Inserting and removing the batteries/rechargeable batteries SK 500 G4: see Inserting and removing the batteries/rechargeable batteries
13	Transmitter type Product name of the connected transmitter
