Inserting and removing the rechargeable battery

The handheld transmitter is powered exclusively by the BA 70 battery (separate accessory).

The BA 70 can be charged in the L 70 USB, the L 6000 with LM 6070 or with the SEK in the CHG 70N-C.

L 70 USB: Charging the rechargeable battery
L 6000: Charging the rechargeable batteries in the L 6000 charger
CHG 70N-C: Charging the rechargeable battery

To insert the battery into the handheld transmitter:

Unscrew the handheld transmitter housing as shown in the illustration and pull it down as far as it will go.
Insert the BA 70 battery as indicated in the battery compartment. Make sure the polarity is correct when inserting.
Screw the handheld transmitter housing back on.

The battery has been inserted.

About the BA 70 rechargeable battery

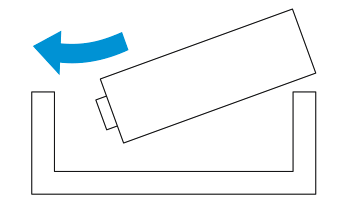

Make sure that the BA 70 rechargeable battery is inserted as follows:
