Home screen
After you switch on the receiver, the two displays initially show the Sennheiser logo. After a short time, the home screen is then displayed.

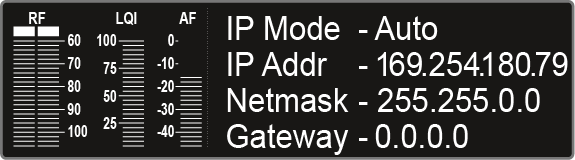

Home screen 4
The fourth home screen contains the following status information about the receiver network settings.
