Stereo diversity receiver EK 2000 IEM
Setting options in the menu
Advanced -> Engineer Mode menu item
In the Engineer Mode menu item of the Advanced submenu, you can configure the menu items and upload profiles.

Instruction manual
Starting up and operating devices of the 2000 IEM series.
- Stereo diversity receiver EK 2000 IEM
  - Product overview
  - Inserting and removing the batteries/rechargeable batteries
  - Connecting earphones to the EK 2000 IEM
  - Attaching the diversity receiver to your clothing
    You can use the belt clip to attach the diversity receiver to your waistband or on a guitar strap.
  - Switching the receiver on and off
  - Lock-off function
  - Displays on the EK 2000 IEM display panel
  - Home Screen
  - Battery status
  - Buttons for navigating through the menu
  - Menu structure
  - Setting options in the menu
    - Squelch menu item
      You can adjust the squelch threshold in the Squelch menu item.
    - Easy Setup menu item
      You can scan for unused frequencies using the Easy Setup menu item.
    - Frequency Preset menu item
      In the Frequency Preset menu item, you can adjust the receiving frequency of the receiver by adjusting the frequency bank and the channel.
    - Name menu item
      In the Name menu item you can enter a name for the radio link.
    - Balance menu item
      In the Balance menu item you can adjust the balance of the audio channels.
    - Mode menu item
      In the Mode menu item you can switch between Stereo and Focus.
    - High Boost menu item
      In the High Boost menu item you can change the treble boost of the output signal.
    - Auto Lock menu item
      In the Auto Lock menu item you can activate or deactivate the auto lock-off function.
    - Advanced menu item
      In the Advanced submenu you can configure enhanced settings.
    - Advanced -> Tune menu item
      In the Tune menu item of the Advanced submenu, you can configure the receiving frequencies for the frequency banks U1 to U6.
    - Advanced -> Pilot Tone menu item
      In the Pilot Tone menu item of the Advanced submenu, you can activate and deactivate the pilot tone evaluation.
    - Advanced -> Limiter menu item
      In the Limiter menu item of the Advanced submenu, you can adjust the volume of the headphone output PHONES.
    - Advanced -> Volume Boost menu item
      In the Volume Boost menu item of the Advanced submenu, you can adjust the volume boost.
    - Advanced -> LCD Contrast menu item
      In the LCD Contrast menu item of the Advanced submenu, you can adjust the display contrast of the display panel.
    - Advanced -> Engineer Mode menu item
      In the Engineer Mode menu item of the Advanced submenu, you can configure the menu items and upload profiles.
    - Advanced -> Reset menu item
      In the Reset menu item of the Advanced submenu, you can reset the settings of the receiver to the factory settings.
    - Advanced -> Software Revision menu item
      In the Software Revision menu item of the Advanced submenu, you can display the current software version of the receiver.
- Stereo transmitter SR 2000 IEM | SR 2050 IEM
- Antenna Combiner AC 3200-II
- Establishing a radio link
- Synchronizing devices
  You can synchronize the 2000 IEM series transmitters and receivers via the transmitter’s and receiver’s infrared interfaces.
- Cleaning and maintenance

Advanced -> Engineer Mode menu item

In the Engineer Mode menu item of the Advanced submenu, you can configure the menu items and upload profiles.

In Engineer Mode, you can use your EK 2000 IEM to read out settings from other EK receivers and save them as profiles.

You can load these profiles during a live transmission in order to monitor and, if necessary, adjust an audio signal reproduced by a read-out EK receiver.

A profile contains the settings of the menu items:

Profiles List menu item

Create up to 16 profiles and read out the settings of the different EK receivers.

Load Profiles menu item

Activate/deactivate profile loading.

Clear List menu item

Delete all profiles.

Profiles List - To read out settings and save them as a profile:

Call up the Engineer Mode menu item in the Advanced menu.
Call up the Profiles List menu item.
Select an unused profile (a profile without a frequency entry).
Press the SET button.
sync appears on the display panel of the receiver.
Place the receiver‘s infra-red interface in front of the infra-red interface of another EK receiver.
The settings of the receiver are assigned to the selected profile.
Repeat this procedure to create profiles of other EK receivers.
You can read out the data of an SR IEM transmitter in the same way. Please note, however, that these settings will only be up-to-date if transmitter and receiver have been synchronized before (Synchronizing devices).

When the factory default settings are restored (Advanced -> Reset menu item), all profiles are deleted.

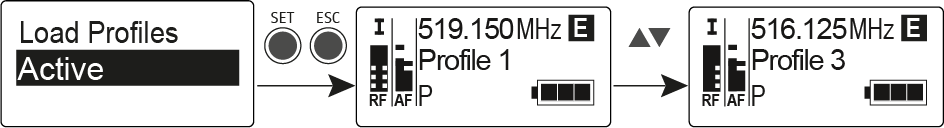

Load Profiles - To select a saved profile:

Call up the Load Profiles menu item in the Engineer Mode submenu.
Select Active to activate the loading of the profiles.
E appears on the standard display.
Press the ESC button to exit the menu item.
Select a profile by pressing the UP/DOWN button on the standard display. The selected profile is loaded; you hear the audio signal of the corresponding receiver.

Engineer Mode remains activated, even if you replace the batteries or switch the EK off and on again.
