Attaching the diversity receiver to your clothing

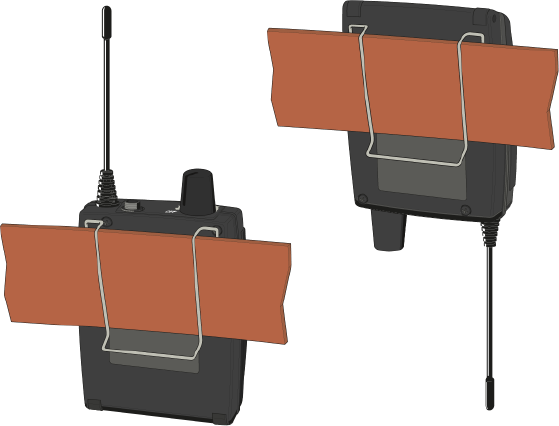

You can use the belt clip to attach the diversity receiver to your waistband or on a guitar strap.
The belt clip is detachable so that you can also attach the diversity receiver with the antenna pointing downwards. To do so, withdraw the belt clip from its fixing points and attach it the other way round.
The belt clip is secured so that it cannot slide out of its fixing points accidentally.

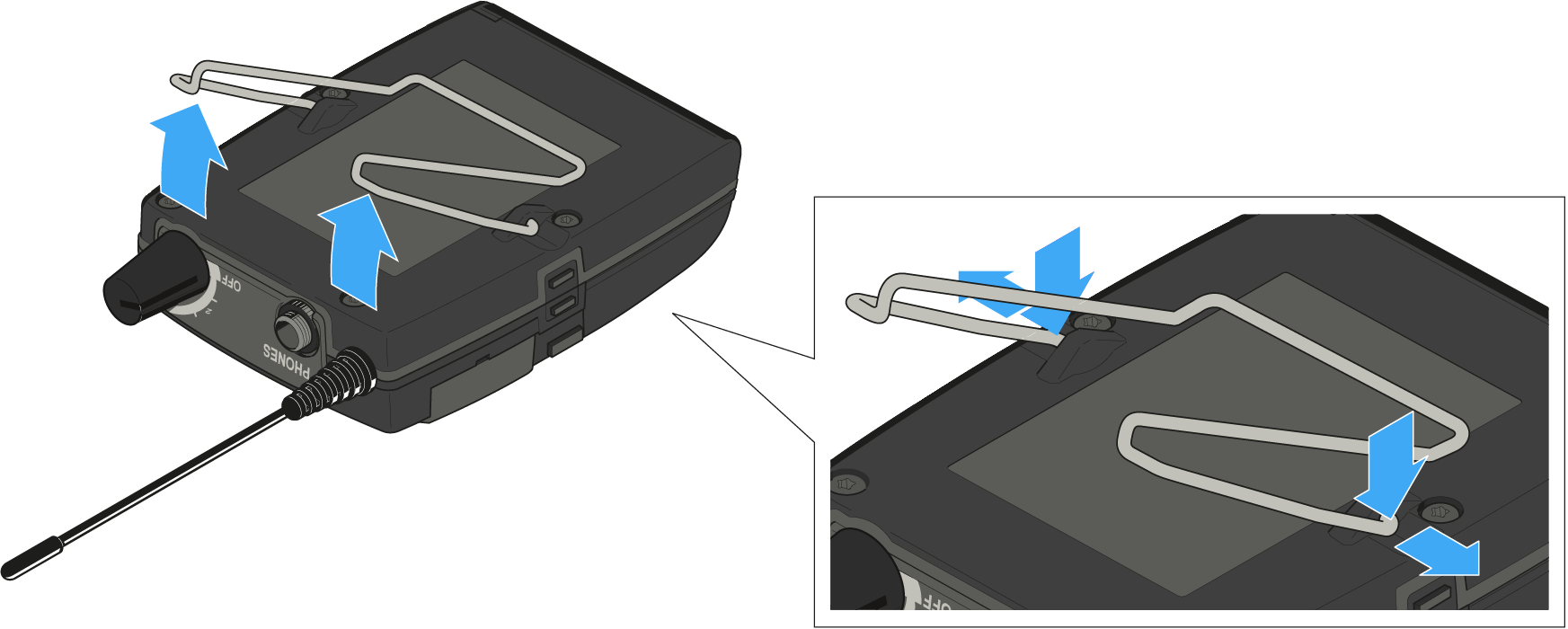

To detach the belt clip:
- Lift the belt clip as shown in the diagram.
- Press one side of the clip downward on the fixing hole and pull it out of the housing.
-
Do the same thing on the other side.
