Connecting earphones to the EK 2000 IEM
| WARNING | |
|---|---|
Danger due to high volume levels
Volume levels that are too high may damage your hearing.
Turn down the volume of the headphone output before you put on the headphone.
| |
To connect the earphones to the receiver:

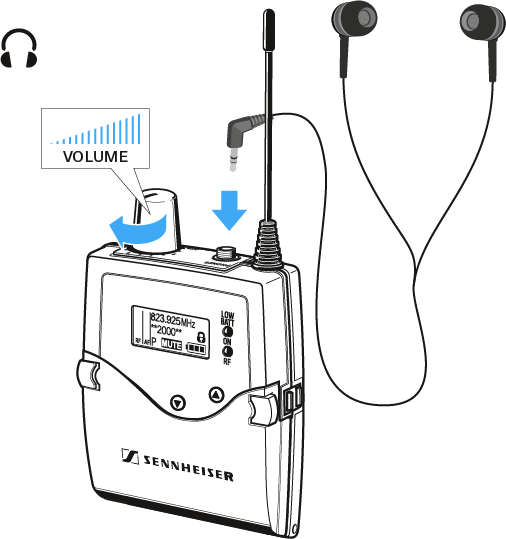

Insert the cable’s 3.5 mm jack plug into the PHONES socket on the receiver as shown in the diagram.
The ground connection of the earphone cable acts as an antenna for the second diversity branch.
