Activating Dante® signal forwarding

Using the Dante controller software, you can activate a digital audio network protocol via Ethernet for the routing and a synchronization of Dante®-compatible devices.

Please note that the audio signal via Dante® is not encrypted!

To route additional Sennheiser Audio devices to the TC Bar, the following steps must be performed:

Activating the Dante® protocol in the Sennheiser Control Cockpit
Forwarding the audio signals in the Dante controller

To activate the Dante® protocol

In the Control Cockpit, navigate to TC Bar > Network.

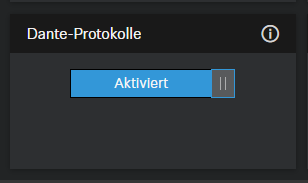

Activate the slider in the field Dante® protocols.

The Dante® protocol was activated.

To route TCC M signals to the TC Bar, for example

Guide the FarEndOut from the TCC M to ExternalMicIn1 of the TC Bar (or ExternalMicIn2).
Guide the FarEndOutL of the TC Bar to the FarEndRef of the TCC M.

We strongly recommend using the beam freeze function of the TCC M microphone. Our tests have shown that the TC Bar’s echo suppression is far better when the beam freeze function is used.

Forwarding AV signals via the Dante controller has been activated.
