Pairing the TC Bar with a Bluetooth® device

You can pair the TC Bar with a device that is capable of Bluetooth® to input and output audio signals from the paired device.

Make sure that the Bluetooth® pairing process has been started (see Starting Bluetooth® pairing).

Via a coupled Bluetooth® connection with the TC Bar, smart devices (such as laptops, smartphones and tablets) can be used to forward microphone signals to the TC Bar and/or output audio signals via the device’s speakers (see Activating Bluetooth®).

To pair the TC Bar with a Bluetooth® device:

Please make sure the distance to the Bluetooth device does not exceed 10 m.

Activate Bluetooth on the Bluetooth device you want to pair.
In your Bluetooth® environment, look for the product designation “TC Bar S” or “TC Bar M” and click Pairing.

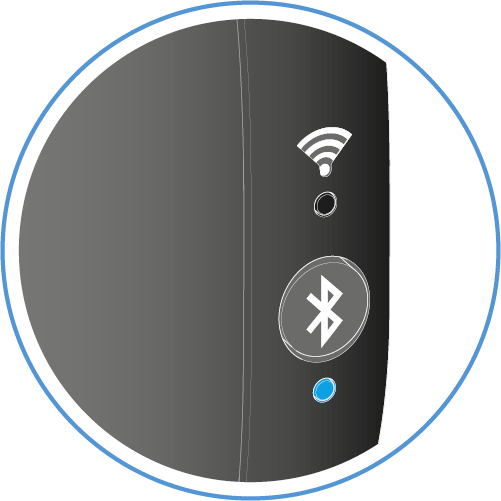

A short confirmation tone sounds. The Bluetooth® LED on the device remains blue.

The TC Bar is paired with your Bluetooth® device. You can now perform the following actions using Bluetooth®:

Use a mobile device (e.g., smartphone) as a microphone in a conference room.
Output audio sound (e.g., music) from a mobile device using the TC Bar.
