Activating Bluetooth®

When the device is delivered, Bluetooth® is deactivated and can be activated in the Control Cockpit.

Please note that after the Bluetooth® function is activated, the Bluetooth® pairing process must be started in order to create a connection (see Starting Bluetooth® pairing).

To activate Bluetooth®:

In the Control Cockpit, navigate to Devices > TC Bar > Network.

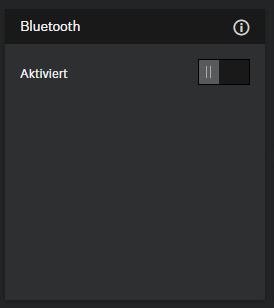

Under Bluetooth, activate the Bluetooth® switch and wait approximately 10 seconds for the operating system to activate the function.

The Bluetooth® function has been activated.

You can now begin the Bluetooth® pairing process (see Starting Bluetooth® pairing).
