Activating a license (general)

A license has to be activated, otherwise you cannot use the Base Station.

NOTICE

License activation requires a direct Internet connection to the device

In order to activate the Base Station using the 18-digit license code, a direct Internet connection is required.

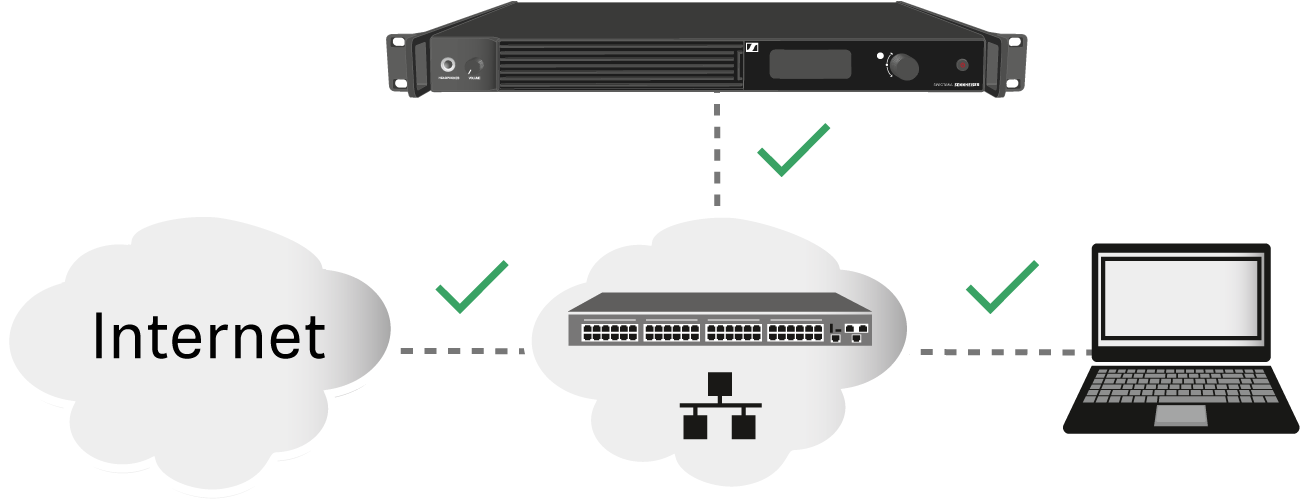

Please connect your Base Station directly to a network with Internet access via a switch or router. For more information, refer to the chapter Connecting to a network.

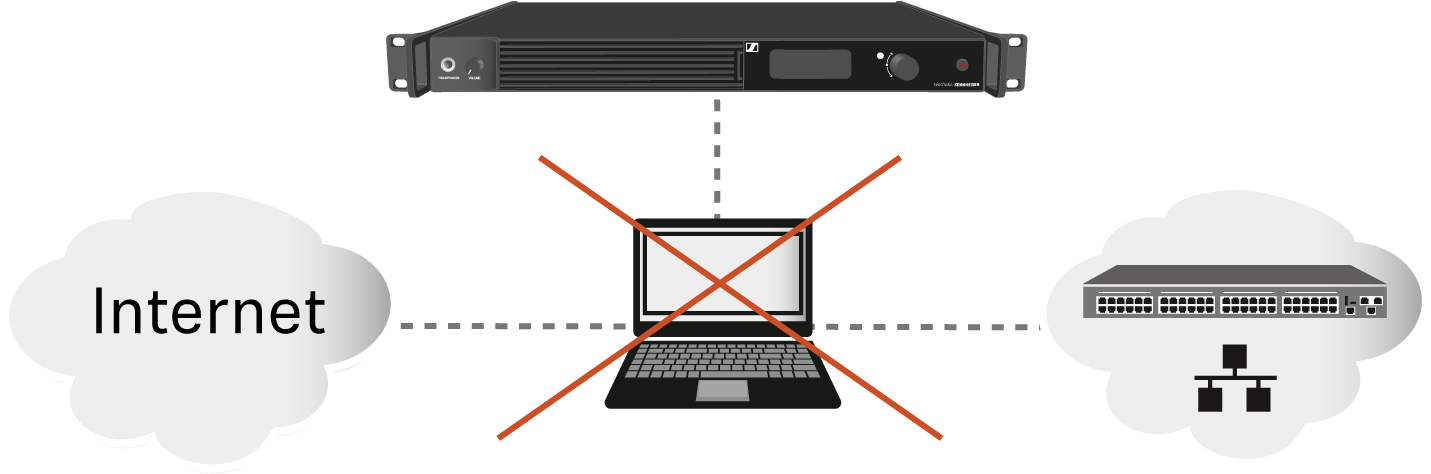

Direct connections via laptop etc. are not supported for activation!

The Internet is only required once for activation.

The license specifies the country-specific frequency ranges and the RF power.

You can activate a license via LinkDesk or Spectera WebUI.

Only one license per Base Station is possible.

To activate a license:

Connect the Base Station to the power supply, see Connecting/disconnecting the Base Station to/from the power supply system.
Connect the Base Station to a network via a switch or router, see Connecting to a network.

The Base Station needs a direct Internet access!
Connect a computer to the same switch or router.
If you want to activate a license via LinkDesk, follow the steps described here: Activating a license (LinkDesk).
If you want to activate a license via Spectera WebUI, follow the steps described here: Activating a license (webUI).
Check the product page sennheiser.com/base-station for the latest firmware.

A license has been activated.
