Activating license

Here you will learn how to activate your region-specific license for your Base Station.

The purchased license (included in the product) is only valid for the region for which the product was designed and approved. The license may not be used in other regions.

Please note that an Internet connection is required to activate the license.

After you have successfully added and claimed your Base Station (see Adding Base Stations) you will be prompted to activate the license.

To activate the license:

Add a new Base Station to your production (see Adding Base Stations).

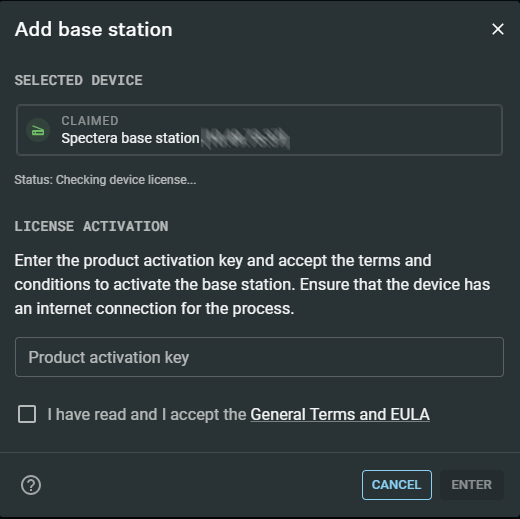

A new license activation window appears:

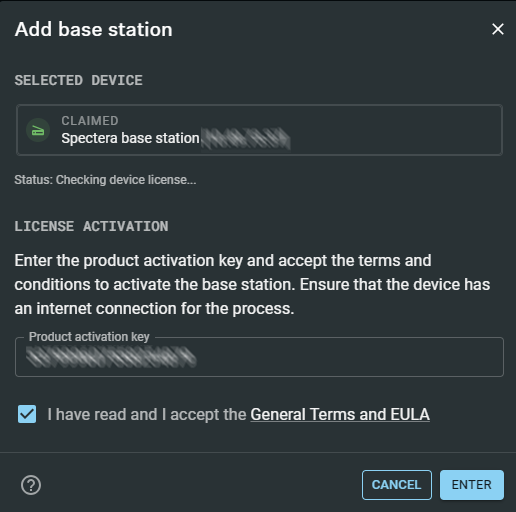

Enter your purchased product activation key.
Read and acknowledge the general terms and the end-user license agreement:
Click ENTER to activate the license.

Your license has been activated successfully.
