Installing slot-in cards

The same or different cards can be installed.

Two types of MADI Cards are available, see MADI Cards.


Madi CARD (BNC)	Madi CARD (OM)

CAUTION

Improper handling of the device may result in its damage

Device contains sensitive electronics to electrostatic discharge (ESD).

Observe the precautionary measures for handling components at risk of electrostatic discharge and take appropriate protective measures when touching the device.

To install a MADI Card in the Base Station:

Completely disconnect the Base Station from the power supply system. See Connecting/disconnecting the Base Station to/from the power supply system.

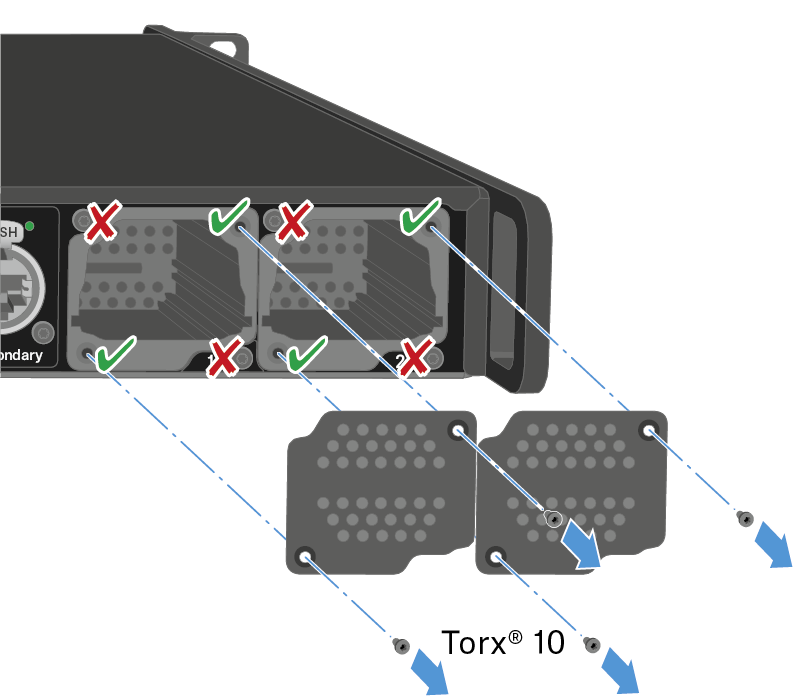

Unscrew one of the dummy caps on the Base Station. To do so, you require a torx® 10 screwdriver.

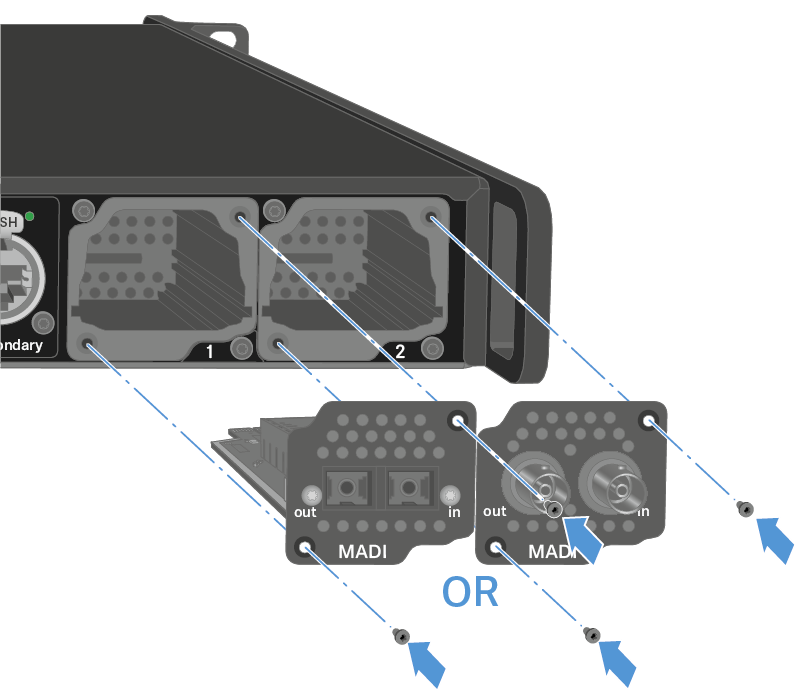

Fully slide the MADI Card into the open slot as shown in the figure.
The card can be inserted into the Base Station housing only in one direction. The lettering on the card must face upward.
Tightly screw on the MADI card with max. 65 cNm +/-10%.

The MADI Cards can be used directly.

A MADI Card has been installed.
