Installing the Base Station in a rack

You can install the Base Station in any conventional 19" rack. The rack mounting angles are already attached to the device.

Always observe the following information during rack mounting.

NOTICE

Material damages caused by devices overheating

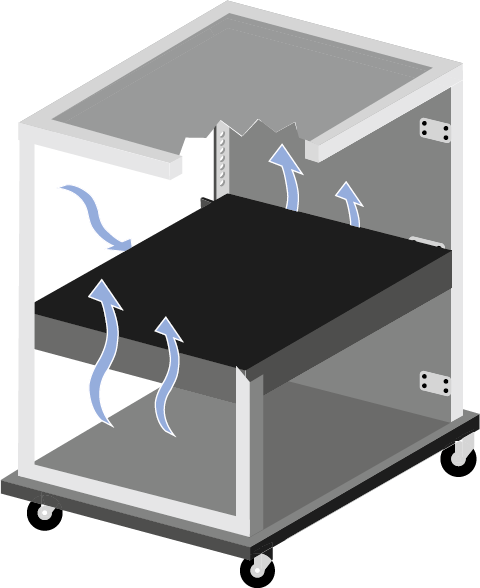

When there is insufficient ventilation, the devices mounted in the rack may overheat.

Ensure that there is sufficient ventilation in the rack, particularly if several devices are installed.

If necessary, install a fan in the rack.

Support the Base Station after installation in the rack.

Due to the weight and depth of the device, there is a risk that it may break off in the rack and become damaged as a result.

Version A

Use special rack mounting rails.
The design of the rack used must be suitable for the installation of these mounting rails.

Version B

Use a suitable object to support the device on the rear side.
Ensure that this object cannot become loose.

The Base Station has been installed in a rack.
