MZA 900 P

Specifications

Frequency response

• 20 - 20,000 Hz (-1 dB)

Gain, switchable (Pre-attenuation)

• 0/-12 dB

Roll-off filter, switchable

• 125 Hz, (-3 dB), 12 dB/Okt

Max. output voltage at

• 0 dB gain: 1.8 V (P48); 0.6 V (P12)
• -12 dB gain: 0.45 V (P12 - P48)

Noise voltage at the output

• A-weighted: 3 µV (0/–12 dB)
• CIIR-weighted: 12 µV (0/–12 dB)

Output impedance

• 100 Ω

Min. load impedance at

• 0 dB pre-attenuation: 5 kΩ (P12 - P48)
• -12 dB pre-attenuation: 2 kΩ (P12 - P48)

Power supply

• P12 - P48
• 10 - 52 V
• 2.6 - 2.8 mA

Connector

• XLR-3 M

Input socket

• 3.5 mm jack socket, lockable

Temperature range

• -20 °C to +60 °C

Dimensions

• Ø 19/22 x 100 mm

Weight

• 60 g

Humidity range

• < 95 % r. F.

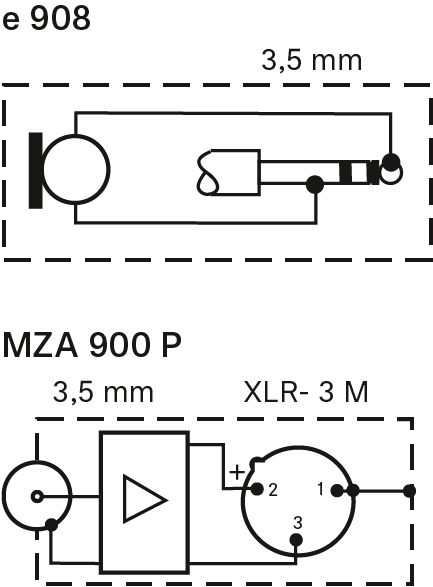

Connector assignment
