e 609 silver

Specifications

Transducer principle

• dynamic

Frequency response

• 40 - 15,000 Hz

Pick-up pattern

• Supercardioid

Sensitivity (free field, no load)

• 1.5 mV/Pa

Nominal impedance (at 1 kHz)

• 350 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Dimensions

• 55 x 34 x 134 mm

Weight

• 140 g

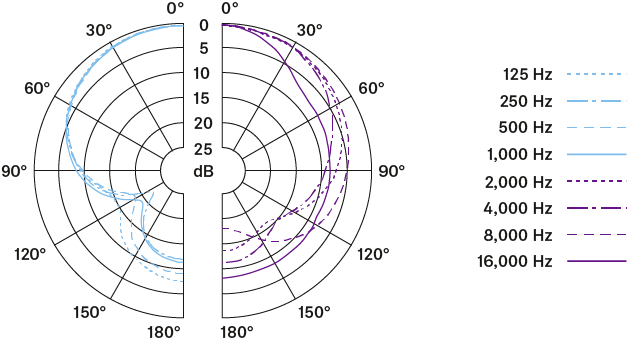

Polar pattern

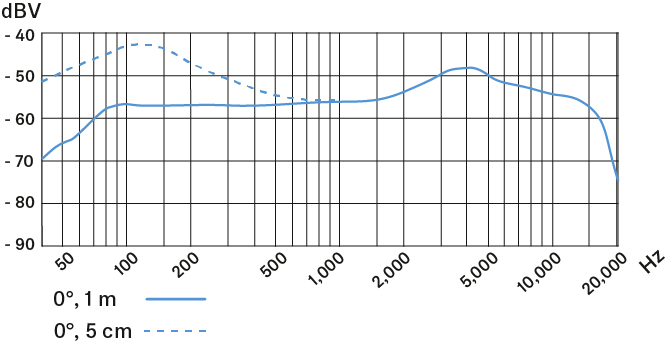

Frequency response

Connector assignment
