e 945

Specifications

Transducer principle

• dynamic

Frequency response

• 40 - 18,000 Hz

Pick-up pattern

• Supercardioid

Sensitivity (free field, no load)

• 2.0 mV/Pa ±3 dB

Nominal impedance (at 1 kHz)

• 350 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Dimensions

• Ø 47 x 186 mm

Weight

• 365 g

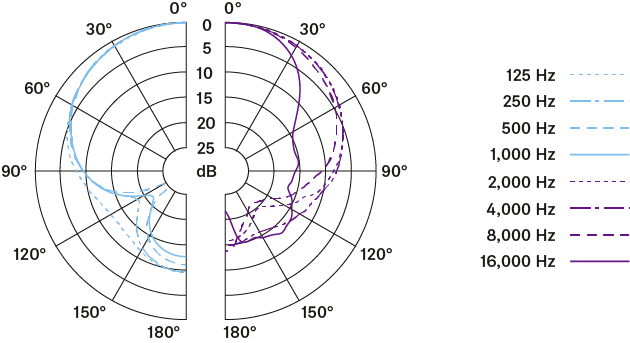

Polar pattern

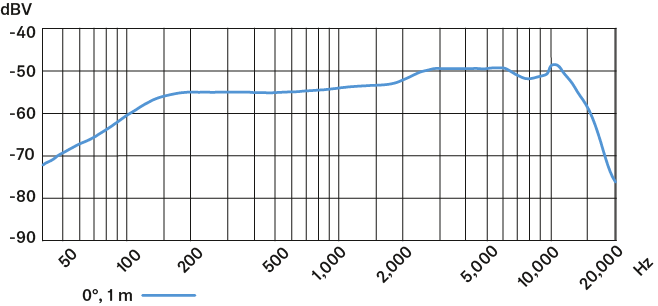

Frequency response

Connector assignment
