e 965

Specifications

Transducer principle

• externally polarized dual-diaphragm condenser microphone

Membran diameter

• 25.4 mm/1"

Frequency response

• 40 - 20,000 Hz

Pick-up pattern

• cardioid/supercardioid, switchable

Sensitivity (free field, no load)

• 7 mV/Pa
• with pre-attenuation: 2.3 mV/Pa

Nominal impedance (at 1 kHz)

• ca. 50 Ω

Min. terminating impedance

• 1 kΩ

Max. sound pressure level (at 1 kHz)

• 142 dB
• with pre-attenuation: 152 dB

Equivalent noise level

• 21 dB (A)

Phantom powering

• 48 V/3.5 mA

Connector

• XLR-3

Temperature range

• 0 °C to +40 °C

Dimensions

• Ø 48 x 199 mm

Weight

• 396 g

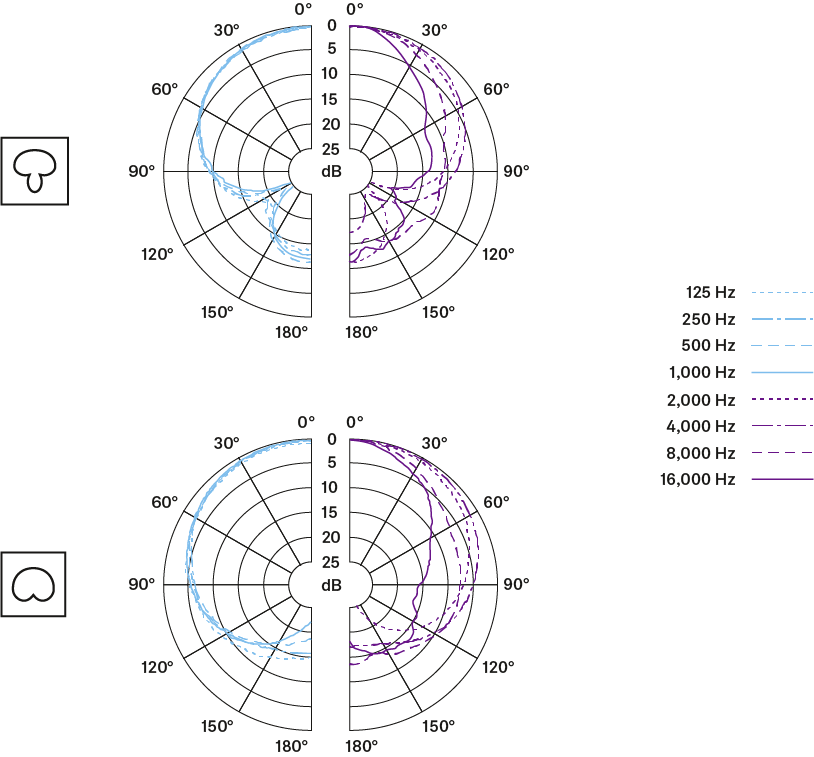

Polar pattern

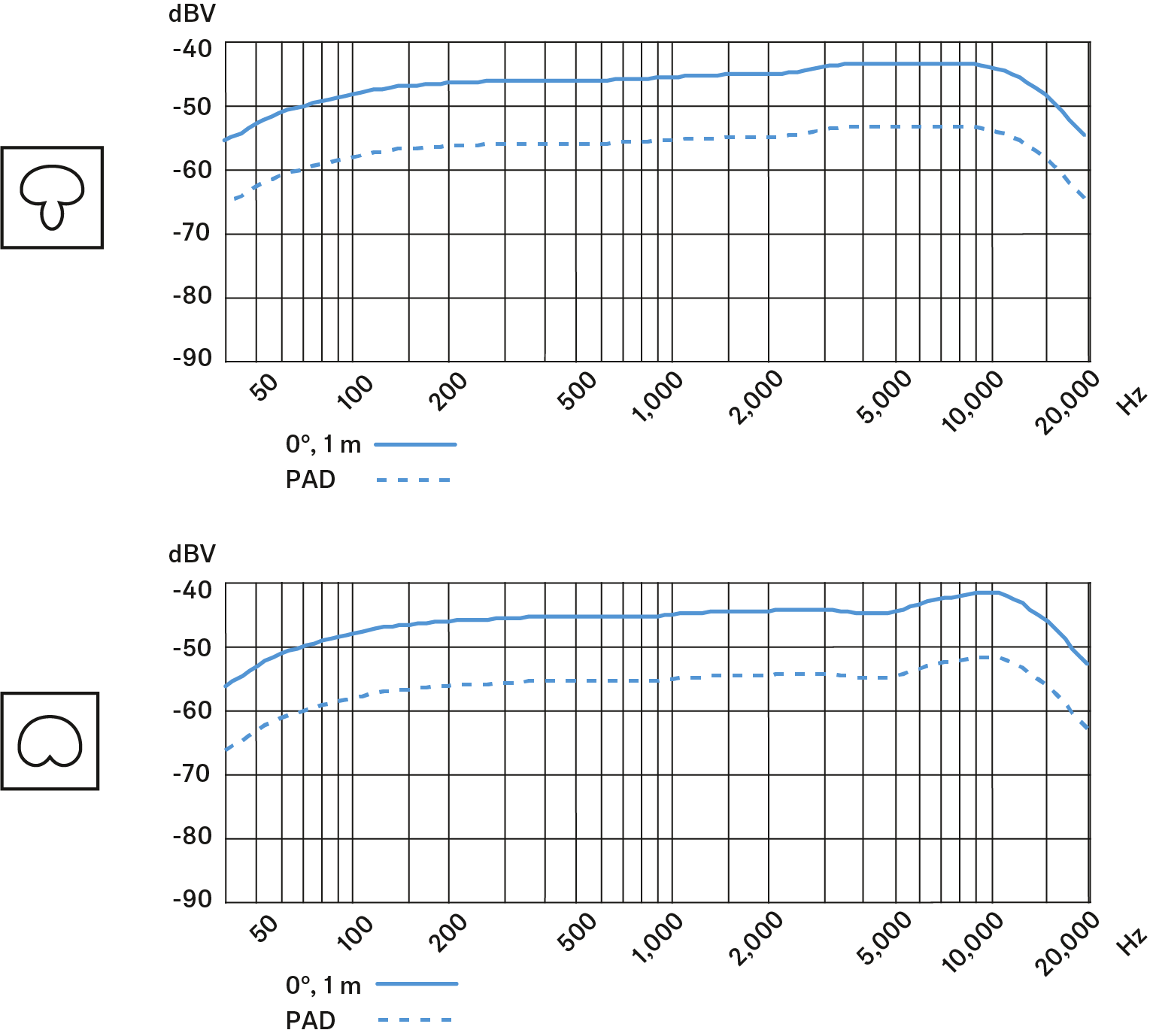

Frequency response

Connector assignment
