e 904

Specifications

Transducer principle

• dynamic

Frequency response

• 40 - 18,000 Hz

Pick-up pattern

• cardioid

Sensitivity (free field, no load)

• 2.0 mV/Pa

Nominal impedance (at 1 kHz)

• 350 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Dimensions

• Ø 41 x 63 mm

Weight

• 125 g

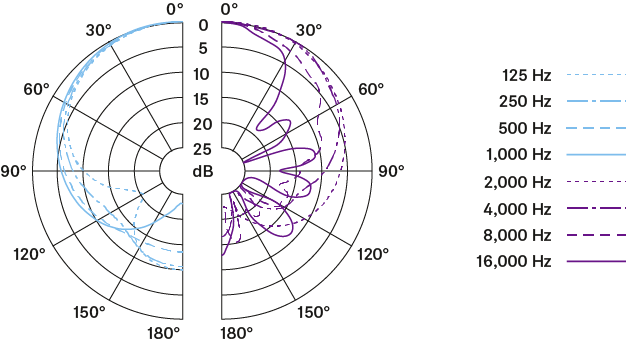

Polar pattern

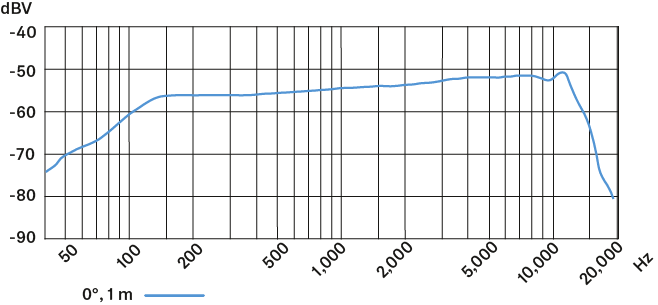

Frequency response

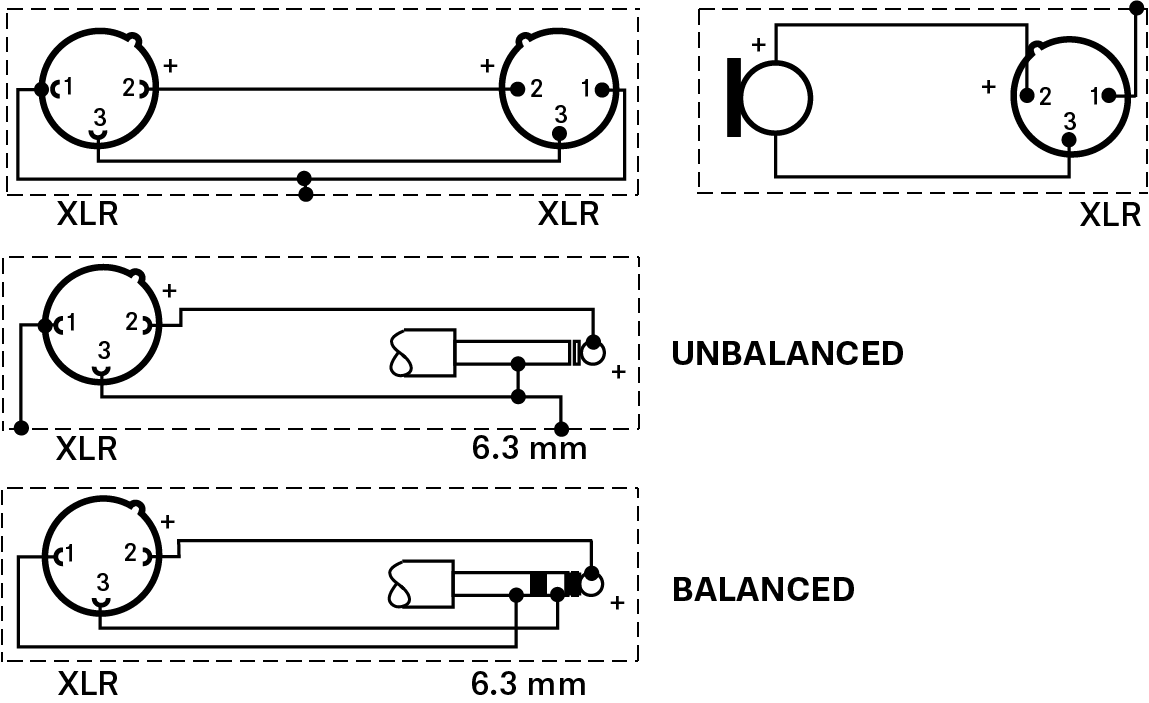

Connector assignment
