e 901

Specifications

Transducer principle

• pre-polarised condenser microphone

Frequency response

• 20 - 20,000 Hz

Pick-up pattern

• Halbcardioid

Sensitivity (free field, no load)

• 0.5 mV/Pa

Nominal impedance (at 1 kHz)

• 100 Ω

Min. terminating impedance

• 1 kΩ

Max. sound pressure level (at 1 kHz)

• 154 dB

Phantom powering

• 48 V

Connector

• XLR-3

Dimensions

• 126.5 x 105 x 26.5 mm

Weight

• 550 g

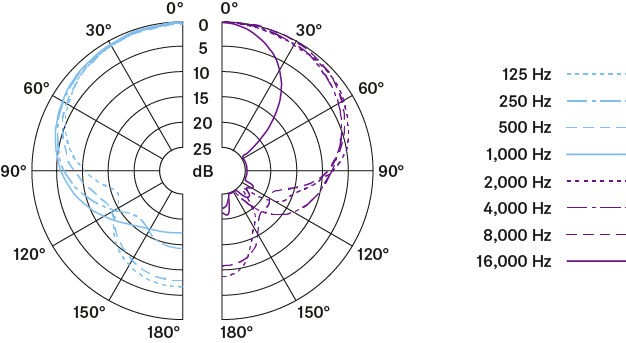

Polar pattern

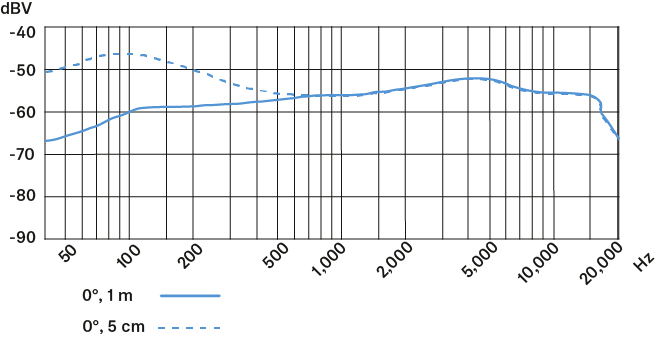

Frequency response

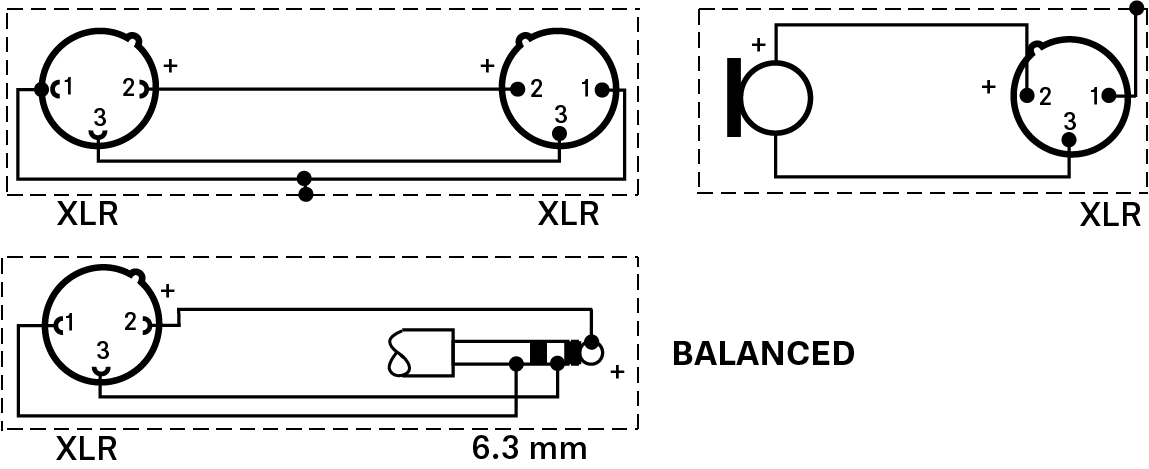

Connector assignment
