e 602 II

Specifications

Transducer principle

• dynamic

Frequency response

• 20 - 16,000 Hz

Pick-up pattern

• cardioid

Sensitivity (free field, no load)

• 0.9 mV/Pa (at 50 Hz)
• 0.25 mV/Pa (at 1 kHz)

Nominal impedance (at 1 kHz)

• 350 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Dimensions

• Ø 60 x 153 mm

Weight

• 318 g

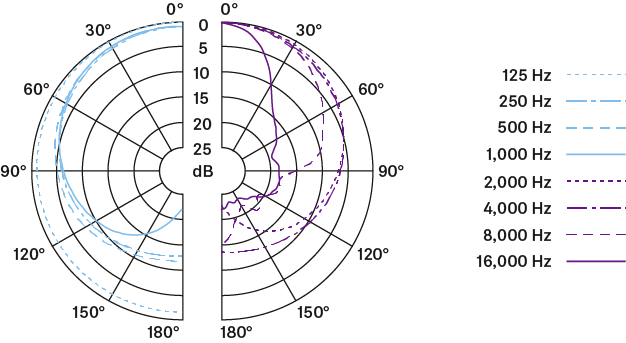

Polar pattern

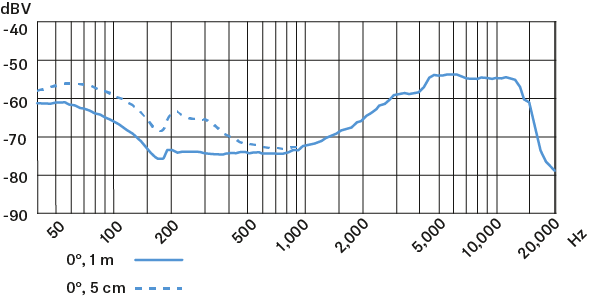

Frequency response

Connector assignment
