e 614

Specifications

Transducer principle

• pre-polarised condenser microphone

Frequency response

• 40 - 20,000 Hz

Pick-up pattern

• Supercardioid

Sensitivity (free field, no load)

• 3 mV/Pa

Nominal impedance (at 1 kHz)

• 50 Ω

Min. terminating impedance

• 1 kΩ

Max. sound pressure level (at 1 kHz)

• 139 dB

Equivalent noise level

• A-weighted: 24 db(A)
• CIIR-weighted: 35 dB

Phantom powering

• 12 - 48 V

Connector

• XLR-3

Dimensions

• Ø 20 x 100 mm

Weight

• 93 g

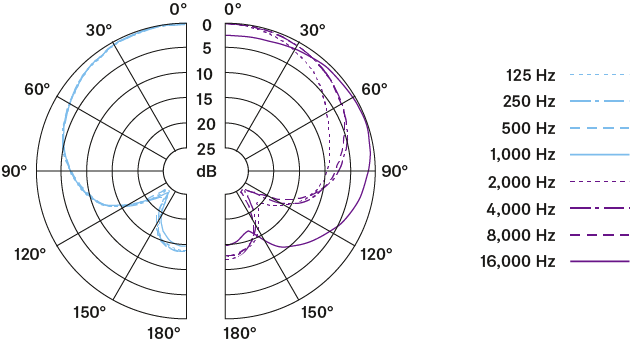

Polar pattern

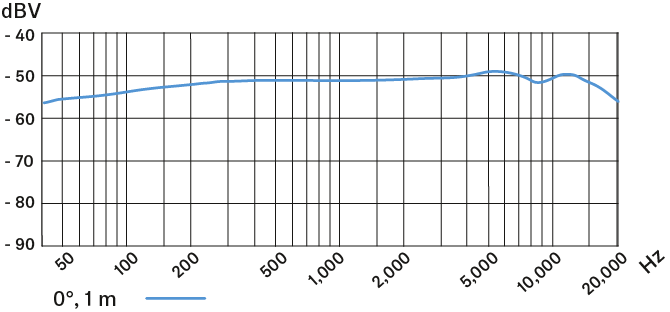

Frequency response

Connector assignment
