e 835-S

Specifications

Transducer principle

• dynamic

Frequency response

• 40 - 16,000 Hz

Pick-up pattern

• cardioid

Sensitivity (free field, no load)

• 2.7 mV/Pa

Nominal impedance (at 1 kHz)

• 350 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Temperature range

• 0 °C to +40 °C

Dimensions

• Ø 48 x 180 mm

Weight

• 330 g

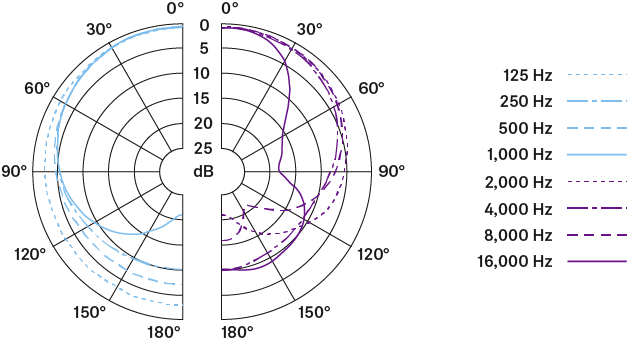

Polar pattern

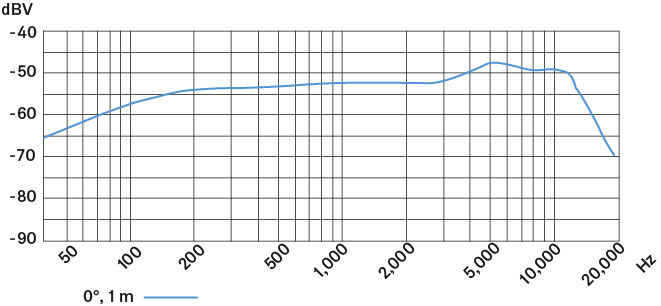

Frequency response

Connector assignment
