Name menu item

In the Name menu item, you can define the name of the link for the channel in question.

This name is the name of the radio link between the transmitter and receiver. In the network settings, you can enter the receiver name as it is displayed in a network: see System -> Network menu item.

To open the Name menu item:

On the home screen, press the jog dial to open the operating menu.

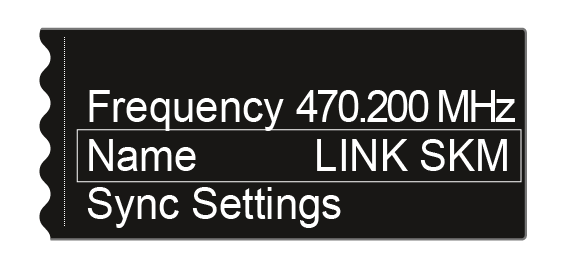

Turn the jog dial until the Name menu item appears in the selection frame:
Press the jog dial to open the menu.

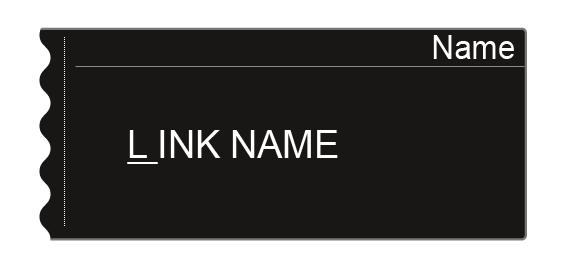

The following view is displayed:
Turn the jog dial to select the desired character.
Press the jog dial to go to the next position.
Press the SAVE button to save the set name.
