System -> Network menu item

In this menu item, you can configure the settings for the network connection.

To make settings in the System -> Network menu item:

Turn the jog dial in the System menu item until the Network menu item appears in the selection frame.
Press the jog dial to open the menu.
The display shows you the option that is currently selected.
Turn the jog dial to choose between the following options:

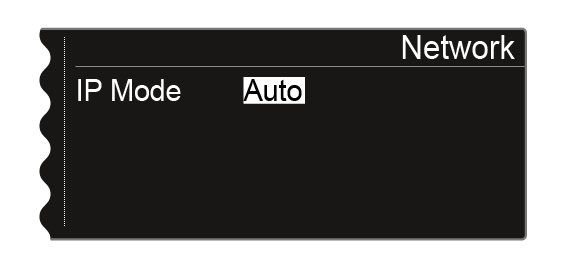

- IP Mode Auto: The network configuration is performed automatically.
- IP Mode mDNS: If you use mDNS for device identification on the network, you can manually set the IP address, netmask, and gateway.

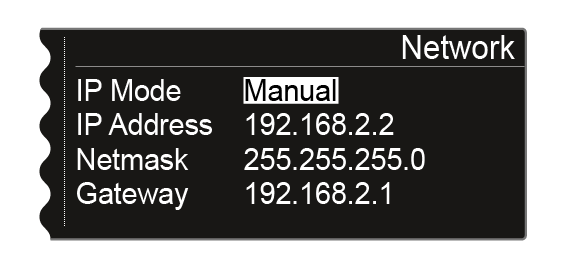

- IP Mode Manual: You can manually set the IP address, netmask, and gateway.
Press the jog dial to switch between the individual network configuration items.
Turn the jog dial to set the value.
Press the SAVE button to save the settings.
