Test Tone menu item

The EM 6000 provides an option for generating a test tone.

You can use it, for example, to check the audio output of the device or level out channels on the mixing console.

To play a test tone in the Test Tone menu item:

On the home screen, press the jog dial to open the operating menu.

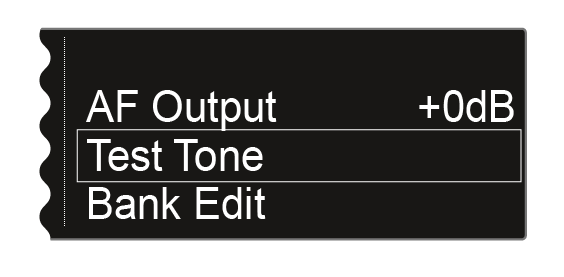

Turn the jog dial until the Test Tone menu item appears in the selection frame:
Press the jog dial to open the menu.

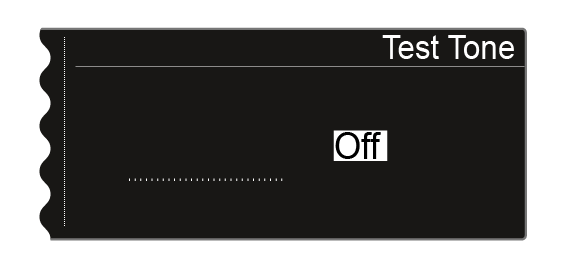

The following view is displayed:

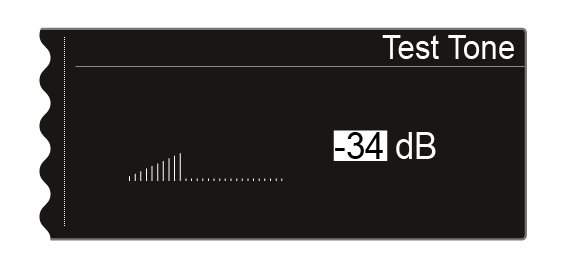

Turn the jog dial to set the volume of the test tone.
You can set the volume of the test tone between -60 dB and 0 dB.

While the test tone is played back, the transmitter audio signal is muted.
