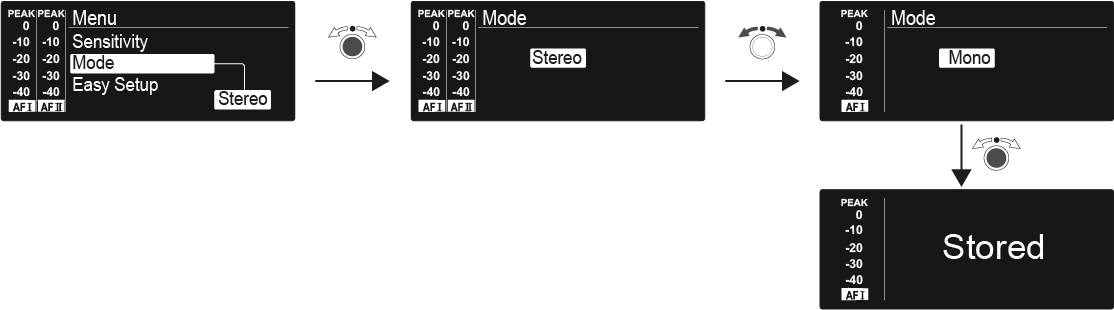

Mode menu item

Configuring the audio transmission

Setting range:

Stereo and Mono

In stereo mode, you can receive the two input signals either as a mixed mono signal or as a stereo signal. To do so, you must select Focus or Stereo mode on the EK 2000 IEM receiver.
