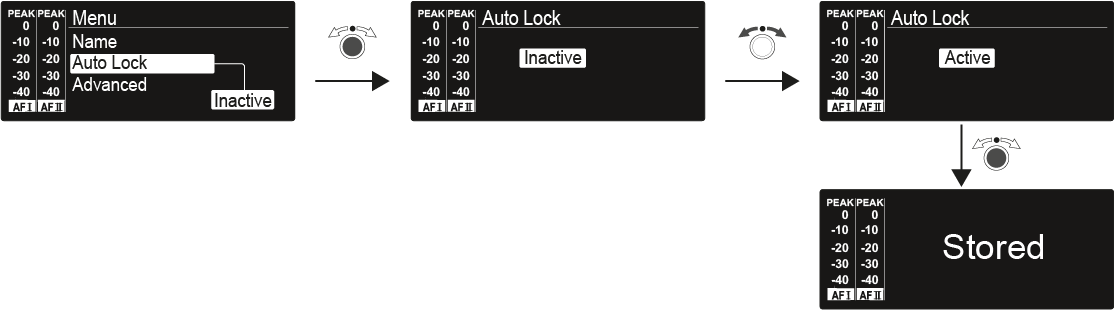

Auto Lock menu item

Switching the automatic lock-off function on and off

This lock prevents the transmitter from atng unintentionally switched off and also prevents any unintentional changes to the transmitter’s configuration. In the standard display, the lock icon shows whether the lock-off function is currently switched on.

You can find information about using the lock-off function under Lock-off function.
