Advanced > Tune menu item

Configuring transmission frequencies and frequency banks U1 to U6.

You can save a total of 16 channels in the frequency banks U1 to U6.

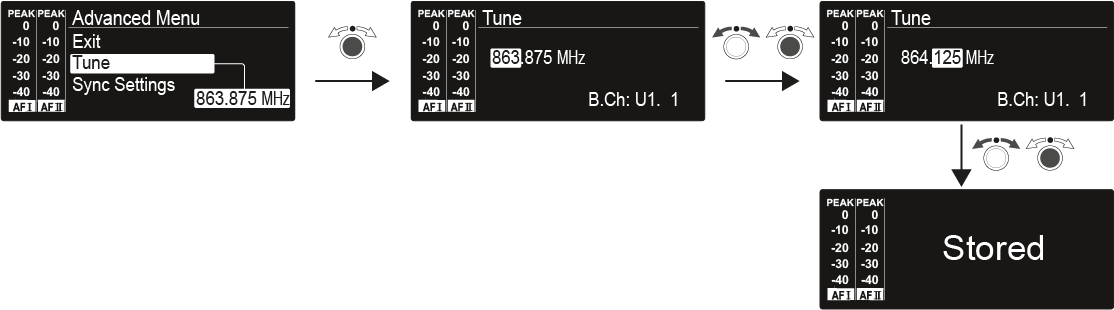

Only adjusting the frequency

Open the Tune menu item in the Advanced menu.
Adjust the settings.

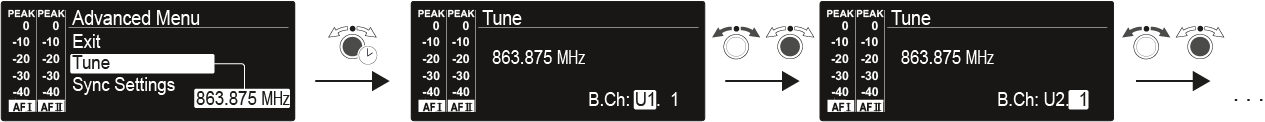

Setting the channel and frequency

Select the Tune menu item and call it up by holding down the jog dial until the channel selection appears.
Adjust the settings.
