Setting the frequency on the receiver

You can set the receiving frequency manually under the frequency menu item.

Before using the device, check whether there are interfering frequencies in your frequency range (Finding an interference-free frequency (frequency test)) and then carry out a soundcheck (Performing a soundcheck).

You can set the frequencies in 25 kHz steps.

To set the frequency:

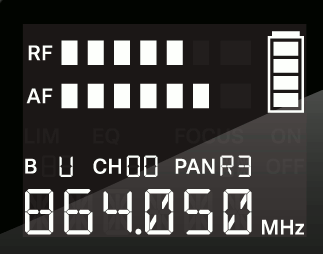

Press the SET button repeatedly until the frequency display flashes.
Press the UP or DOWN button to adjust the frequency in 25 kHz steps.
Press the SET button
- briefly to temporarily save the settings and move to the next menu item
- for two seconds to immediately save the changes and exit the menu
